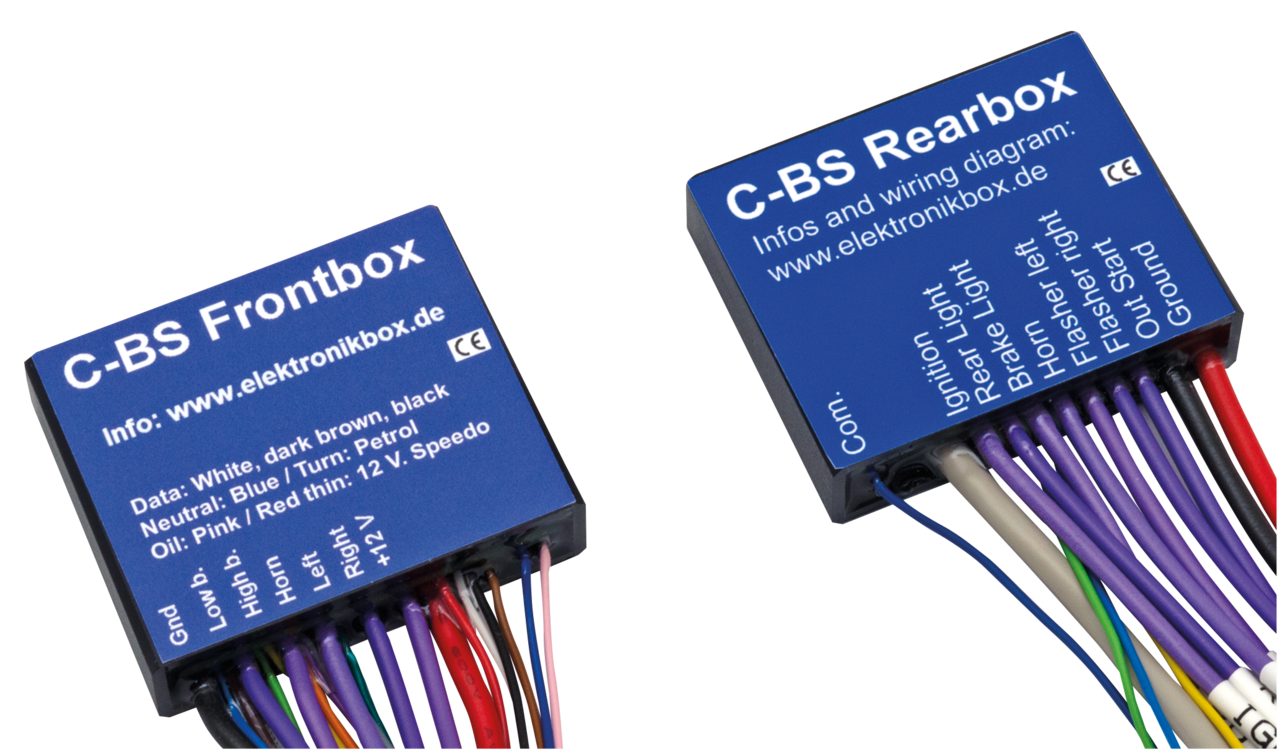

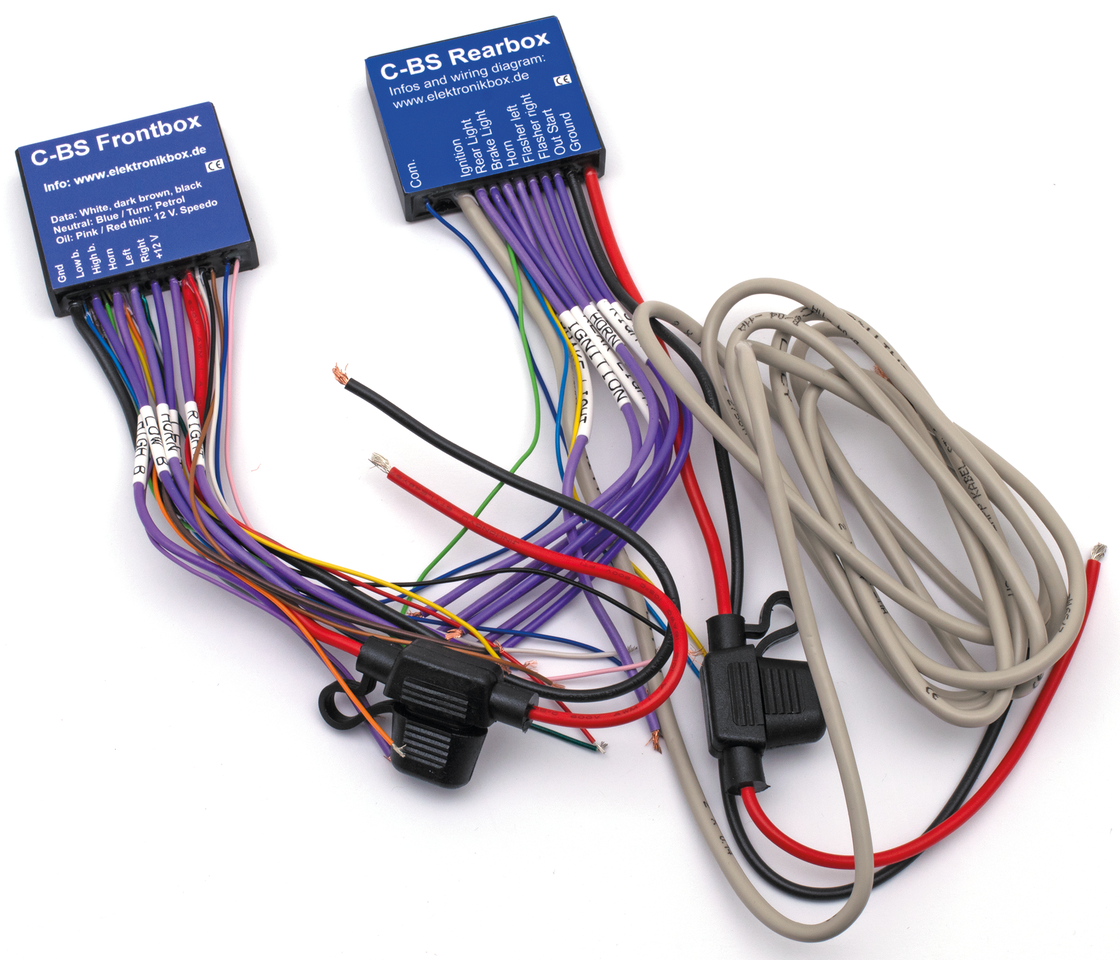

By far the easiest complete wiring system ever seen. Great for custom builds or re-wiring of older bikes. The wires from OEM or push-button handlebar switches for ignition, high and low beam, turn signals, starter motor, horn, brake light, speedometer and control lights connect to the C-BS front box, for example fitted in the headlight housing. The front box also connects to the ignition switch, and then, with only three data wires, to the rear box, for example fitted under the seat. The C-BS rear box connects to the, starter relay, taillight, brake light, rear turn signals and ground. Power, horn and front turn signals can be wired to either the front- or rear box. This saves an impressive length of wire, a lot of space and many hours of installation time. Both the front and rear control modules are 50 x 12.5 x 42mm (approx. 2"x1/2"x1 5/8") making it easy to find space for them. The system can be used with or without side stand switch control and with or without neutral switch control, 6-18 Volt system.

Elektronikbox C-BS wiring system

Digital Harness C-BS

• Category: Wiring Harnesses & Modules
