Axel Joost Elektronik Elektronikbox Air Ride Control Module – Electric & Light

This Air Ride module memorizes and recalls the compressor up-time and the valve open-time, thus saves and recalls the specific height settings of your bike. The two outputs can drive loads with a power of up to 350 Watt peak and 200 Watt continuously. The individual height can set and store via the following procedure:

- Press the button and switch on the ignition. The pump will start immediately.
- Hold the button until your bike has the preferred height.
- Release the button and press it again until the bike is in the lowest position. That's it.

Next time you switch the ignition on the Air Ride Control activates the compressor till your bike is on the set height again. And when you switch the ignition off the Air Ride Control will lower the bike again. However, you can always stop the function by a press on the button. You can also control the height by a press on the button. One press activates the pump and a further press activates the valve. Hold the button till your bike is on the height you want. The module can also be used as normal high current button relay when the blue wire is connected to ground. Measures only 40 x 25 x 12.5mm (1 9/16"x1"x1/2").

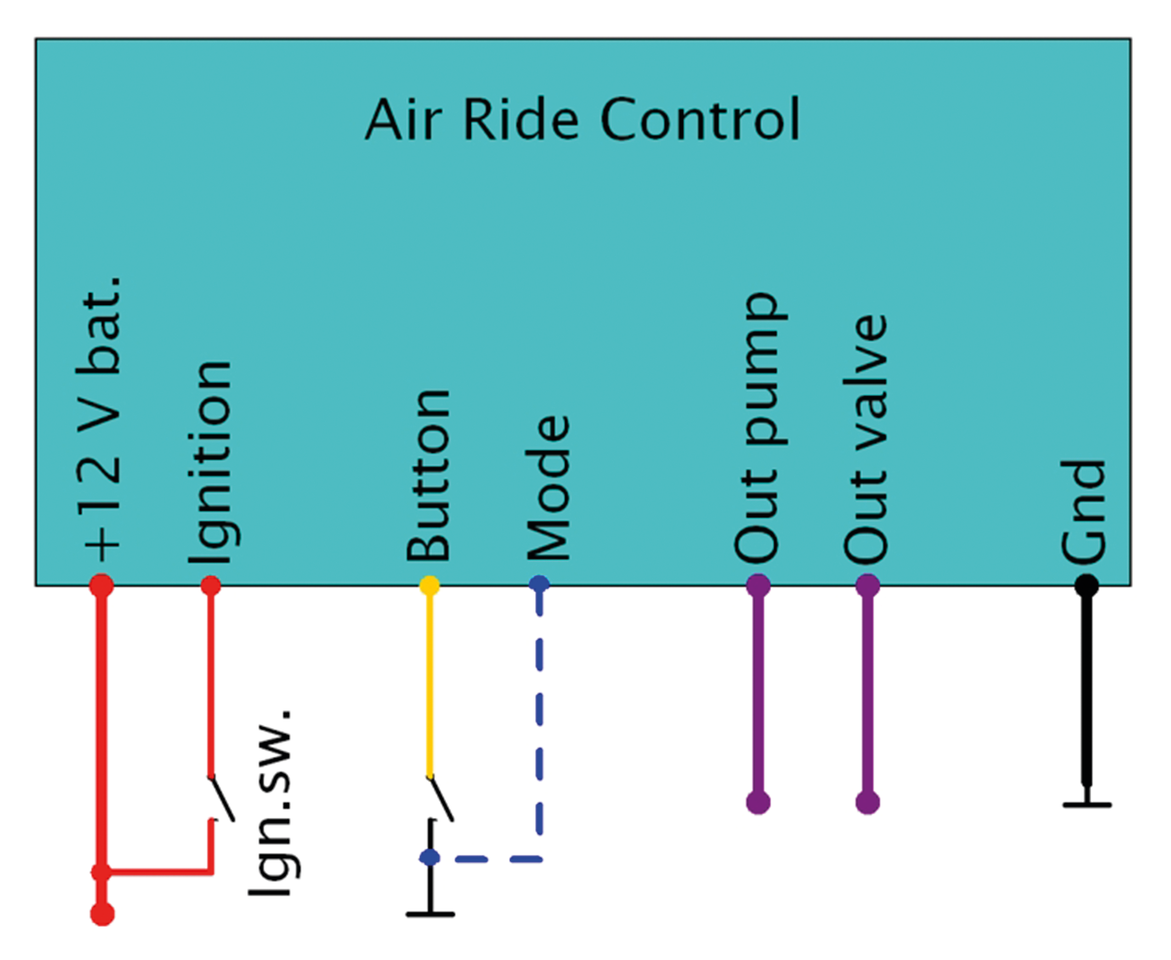

Elektronikbox Air Ride Control module

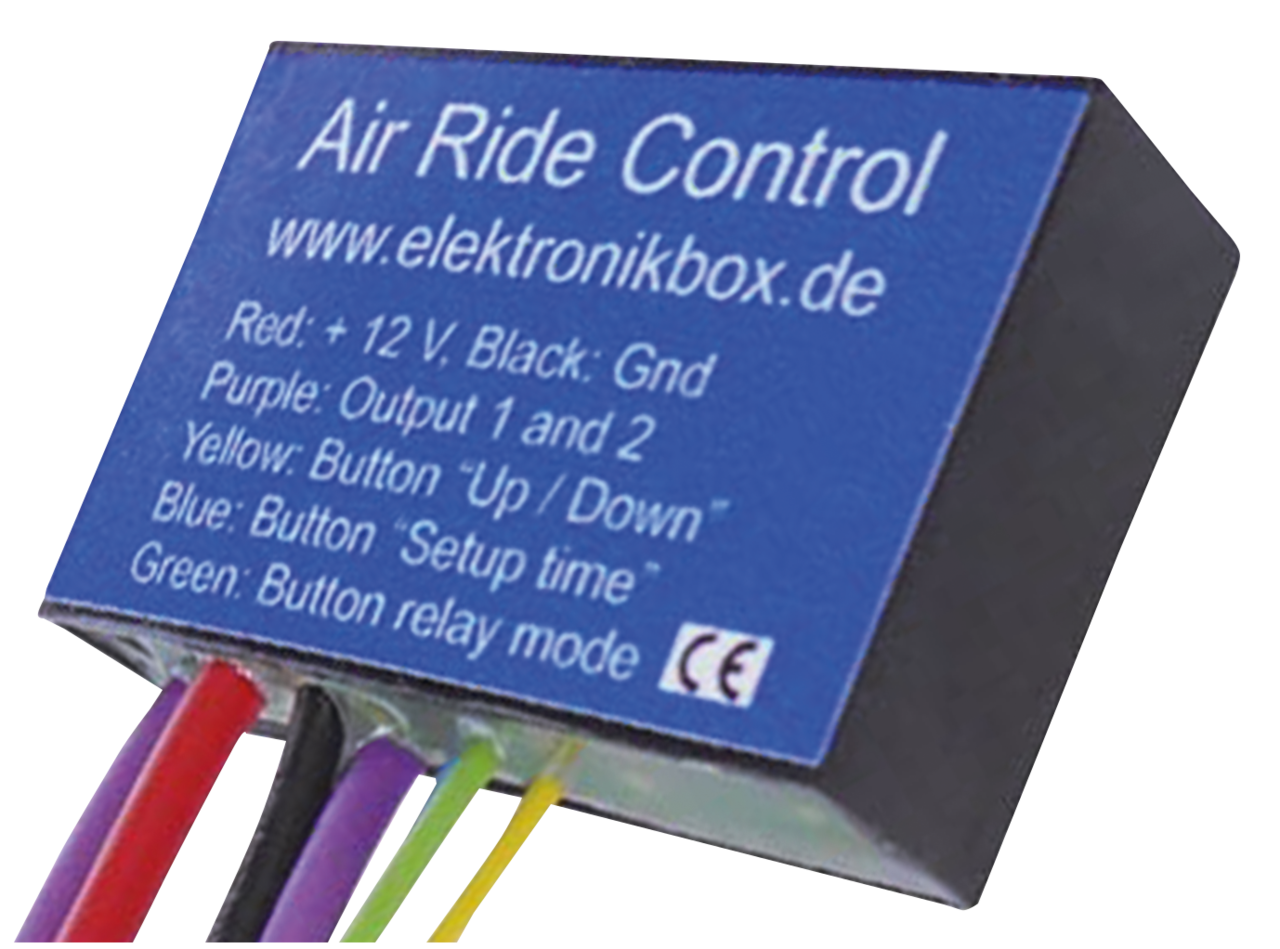

Air Ride Control

• Category: Wiring Harnesses & Modules
