Axel Joost Elektronik Elektronikbox Version H – Electric & Light

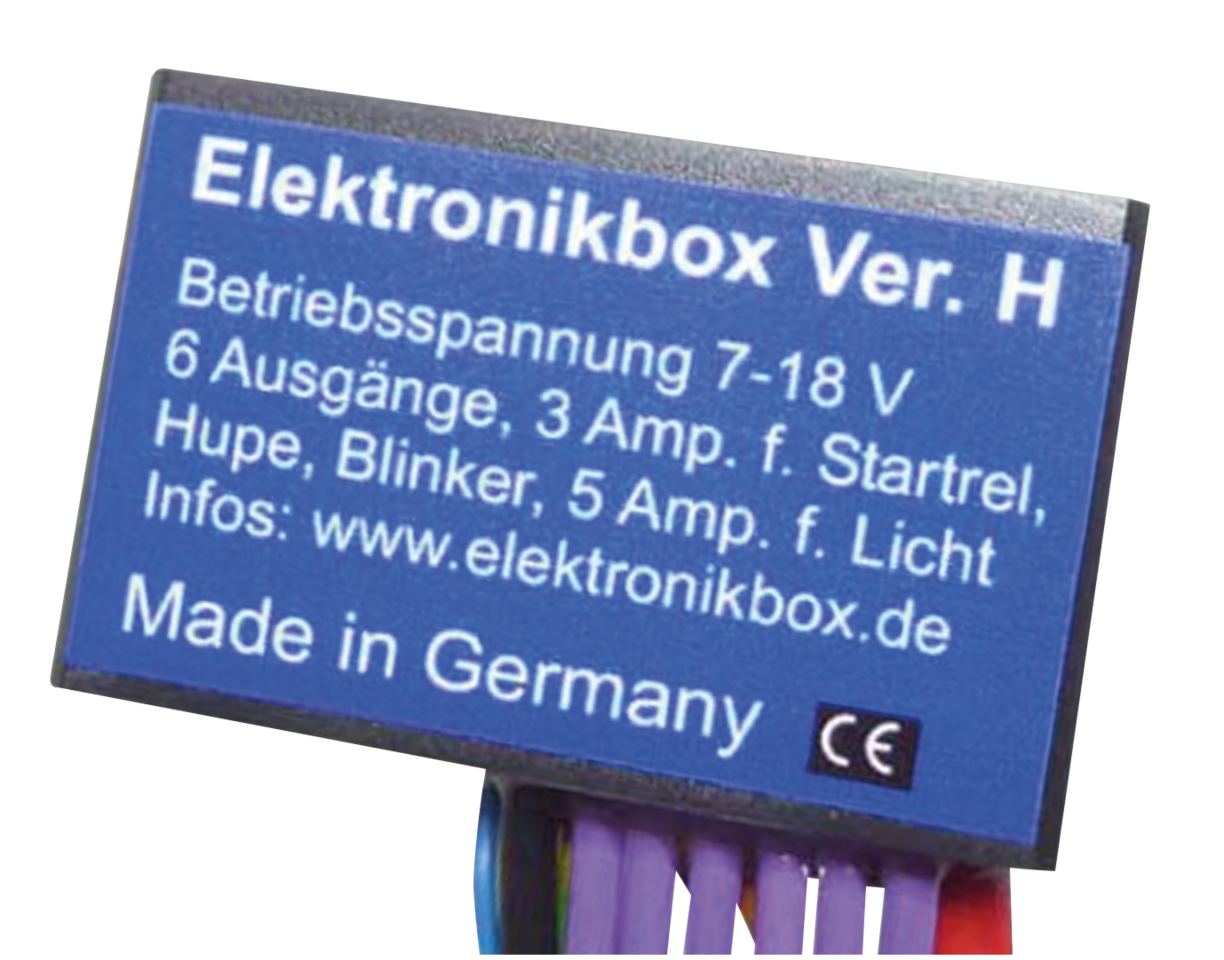

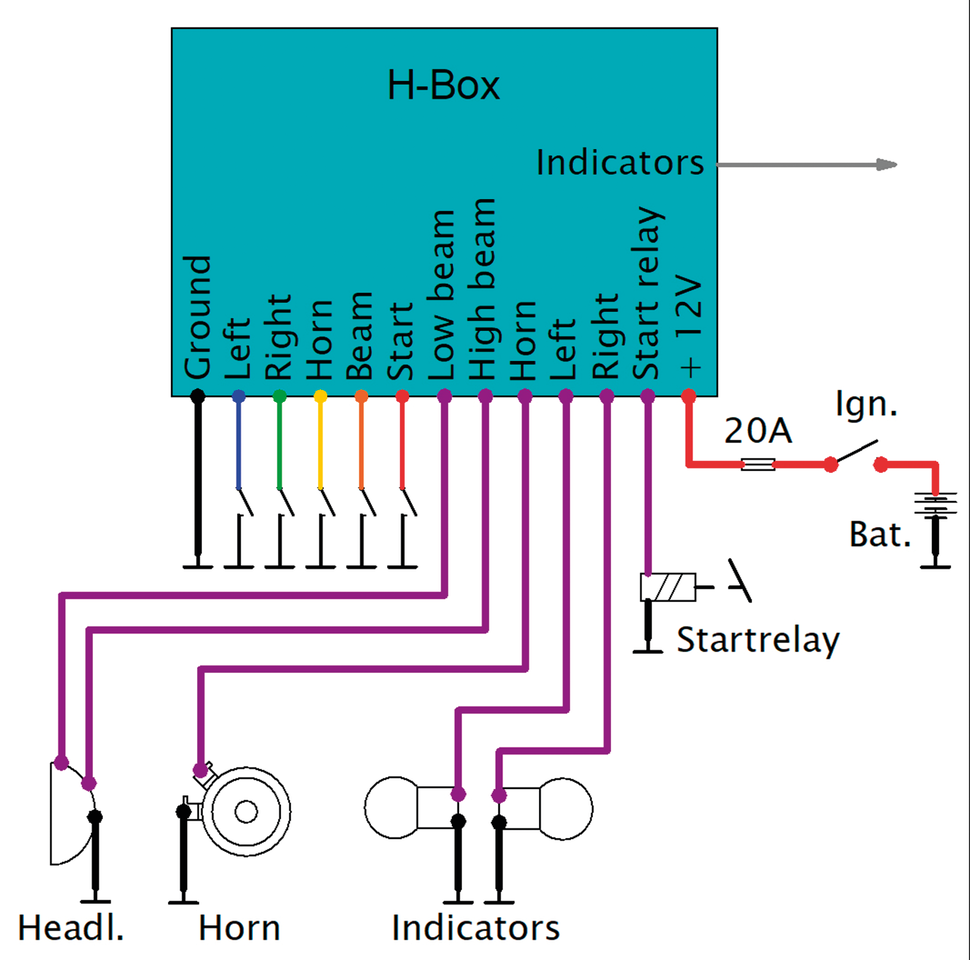

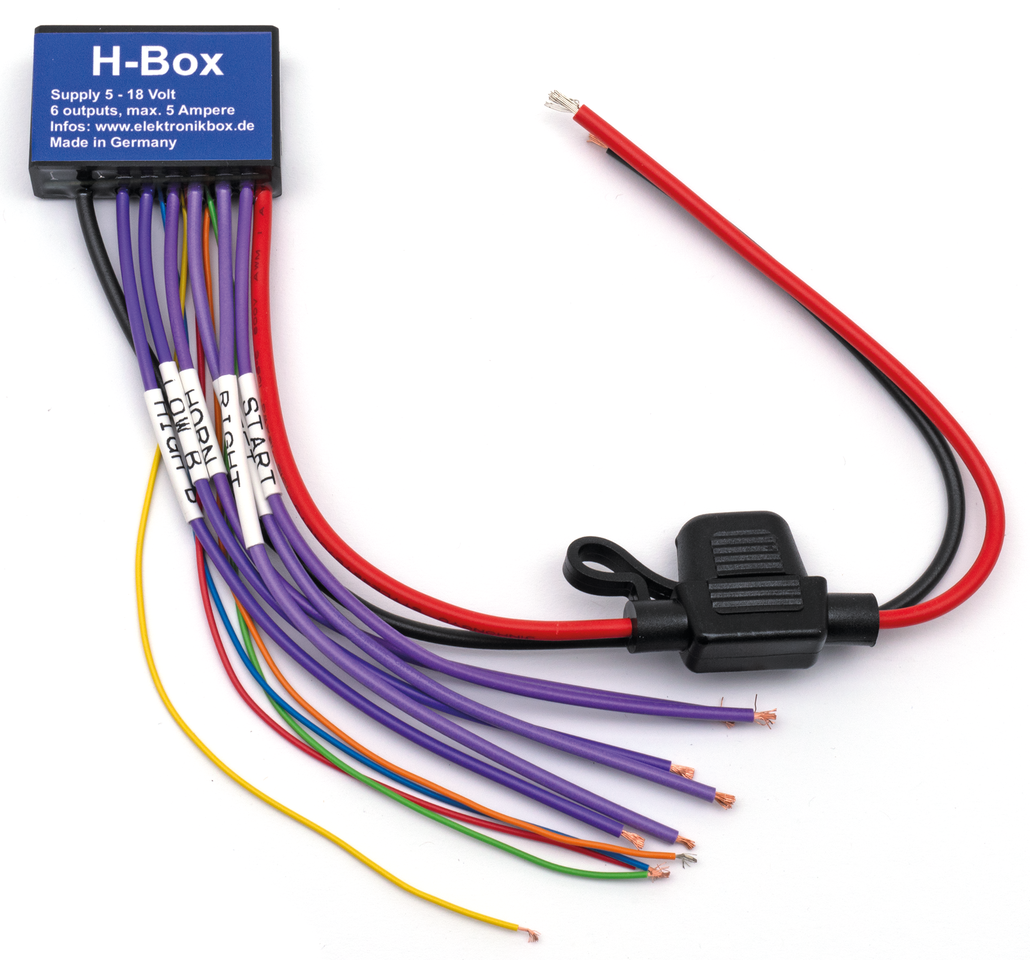

With a size of only 40mm x 25mm x 12,5mm this is the world's smallest electronic control box, making wiring a motorcycle a breeze. It works with stock handlebar control switches or with your choice of five or two custom momentary push buttons. Features a built-in turn signal relay with hazard light function that operates led or bulb-style turn signals at a in "90 flash-per-minute" constant velocity. The turn signal relay can also be programmed to switch off automatically after 40 flashes. When used on bike with an electric starter you must use an external starter relay. You can use 0.14mm2 (26 AWG) wire for inputs, 0.75mm2 (19 AWG) wire for power outputs and 1.5mm2 (16 AWG) for the main power line. Kick starter bikes can use the starter connection for the brake light using the same thin diameter 0.14mm2 wire from the switch to the control box. Maximum output for the headlight is 5 Amps and 3 Amps for all other outputs. The Elektronikbox Version H has various easy to program function that are clearly described in the installation instructions.

Note: When you also need to control a neutral switch and/or a side stand switch and/or ignition and/or the brake light we recommend the ZPN 749504 Elektronikbox Version D.

Elektronikbox version H

Electronicbox Version H
