Dakota Digital MVX Analog Speedometer/Tachometer - mph - MVX-2004-KG-K

Upgrade your motorcycle with the Dakota Digital MVX Series Analog Gauge System. This all-in-one gauge system provides essential information at a glance, blending classic analog style with modern digital functionality. Get accurate readings and customizable displays to enhance your riding experience.

Description

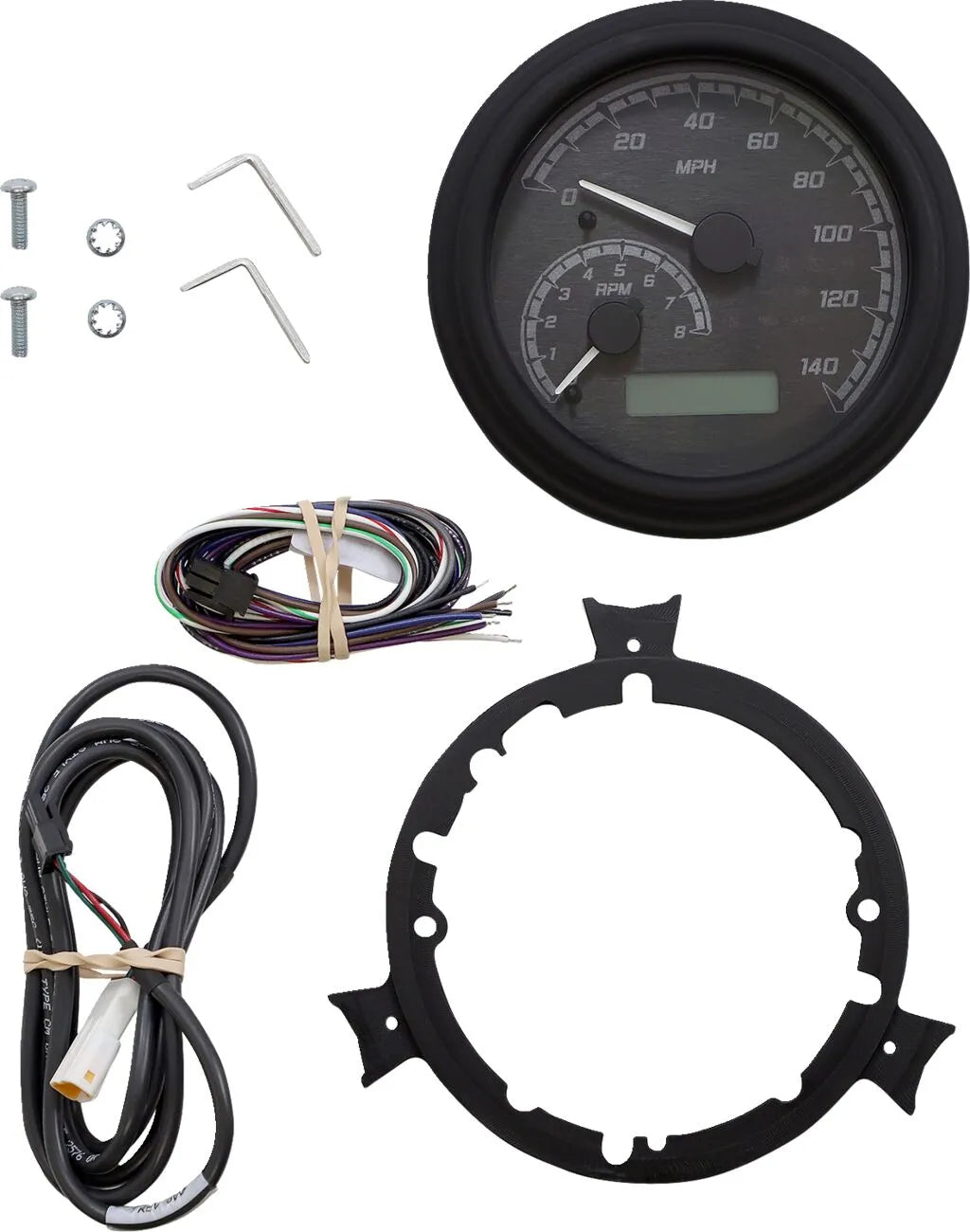

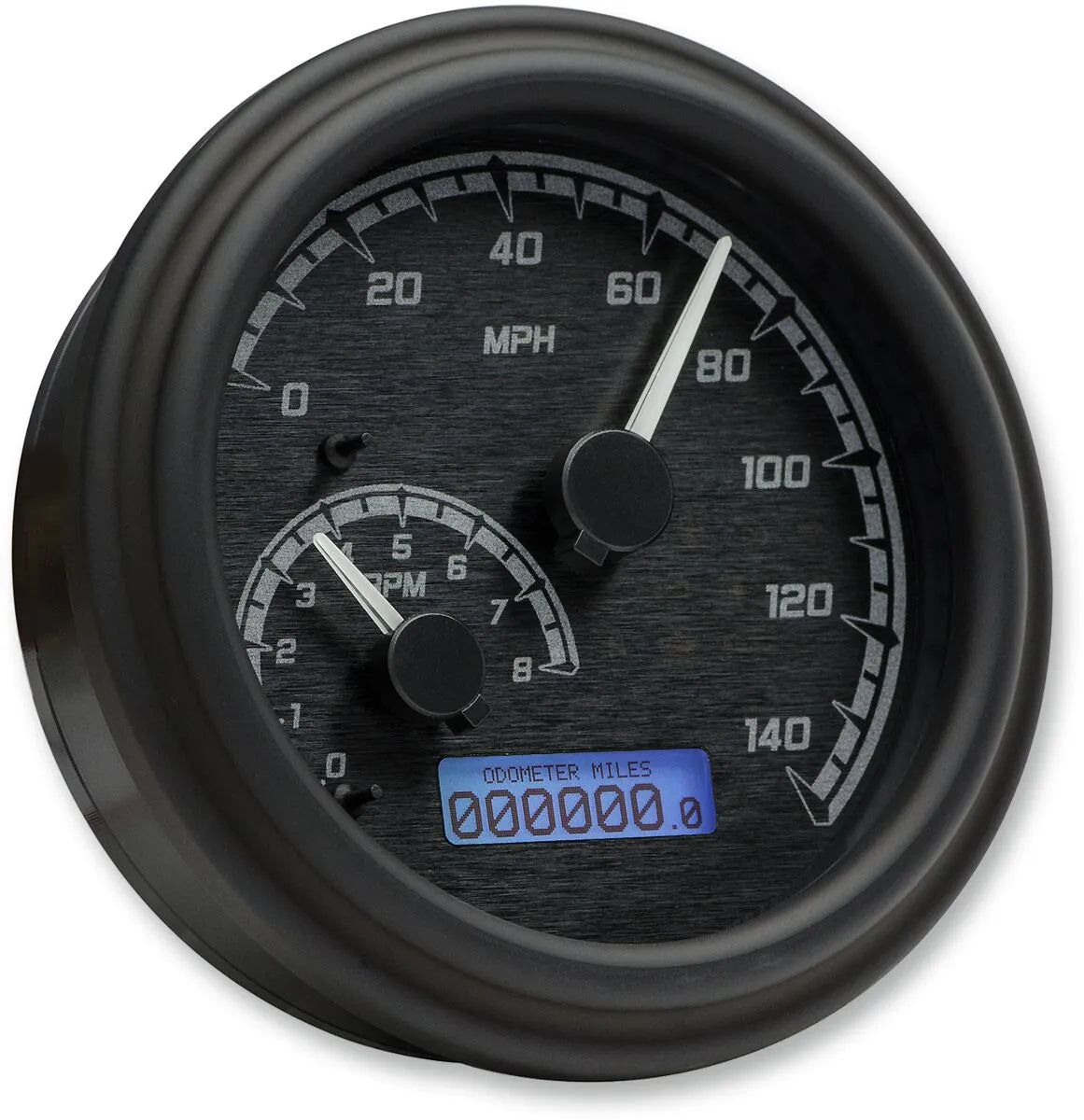

The Dakota Digital MVX Series Analog Gauge System combines a 140 mph speedometer, 8,000 rpm tachometer, odometer, and dual resettable trip meters into a single, stylish unit. It also features a comprehensive indicator light set for turn signals, high beam, neutral, and low oil pressure. This system is designed for enthusiasts who demand both form and function. The MVX series provides performance calculations such as 0-60 time, top speed recall, and quarter-mile time and speed. Monitor your bike's vital stats with the voltage readout, resettable miles to service, and cylinder head temperature sensor. The seven-speed gear position indicator ensures you always know what gear you're in. Installation requires cut/splice wiring (not a direct plug-in). The gauge's case has a 4-1/4" diameter, with a 4-5/8" bezel diameter.

Features & highlights

• Combines speedometer, tachometer, odometer, and indicator lights in one unit.
• User-selectable colors for pointer, backlight, and LCD message center (7 colors for '99-'03 models, 31 colors for '11-'22 models).
• 8,000 rpm tachometer with adjustable shift point and digital numeric readout.
• Displays performance calculations like 0-60 time and quarter-mile stats.
• Features resettable miles to service, hour meter, and voltage readout with low-voltage alert.
• Includes seven-speed gear position indicator compatible with 3- to 7-speed transmissions.
• Provides security system and automatic turn signal cancelling compatibility.

Technical specifications

• Brand: Dakota Digital
• Product Name: Gauge
• Type: Analog Speedometer
• Speedometer: 140 mph
• Tachometer: 8,000 rpm
• Face Color: Black, Gray
• Housing Color: Black
• Outside Diameter: 5" (12.7 cm)
• Calibration: 0 kph - 225 kph, 0 rpm - 8,000 rpm
• Features: Backlit, Indicator Lights
• Units: Kit

Important to know

Oil pressure sending unit sold separately (part #s 2212-0513 or DS-250019). Cylinder head temperature sensor requires factory sender unit. Wiring installation is cut/splice; this is not a direct plug-in gauge.
