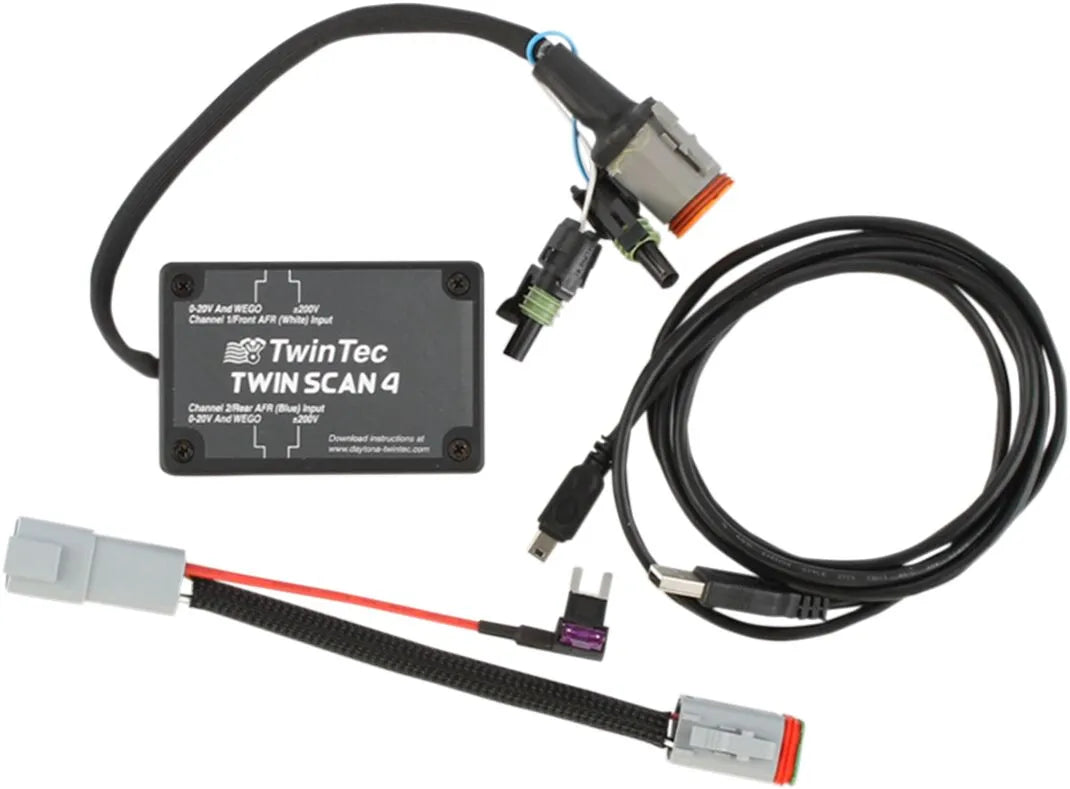

Daytona Twin Tec Twin Scan 4 ABS Diagnostic Scan Tool

Unlock the full diagnostic and programming potential of your Harley-Davidson with the Daytona Twin Tec Twin Scan 4 ABS Diagnostic Scan Tool. This comprehensive kit provides professional-grade capabilities for reading trouble codes, adjusting ECM settings, and much more, ensuring your motorcycle runs at peak performance.

Description

The Daytona Twin Tec Twin Scan 4 ABS Diagnostic Scan Tool is an essential device for any serious motorcycle enthusiast or professional mechanic working with modern Harley-Davidson models. Designed to interface seamlessly with your bike's engine control module (ECM), body control module (BCM), speedometer, tachometer, and anti-skid braking system (ABS), this powerful diagnostic tool allows you to read and clear diagnostic trouble codes with ease. Beyond simple code reading, the Twin Scan 4 ABS offers advanced ECM settings programming, enabling adjustments for Automatic Compression Release (ACR), Engine Idle Temperature Management System (EITMS), cruise control, and active exhaust settings. Its compatibility with Windows XP/7/8/10/11 PCs ensures a user-friendly display and operation. The unit also features robust stand-alone data logging, capable of storing up to one hour of engine data, which is invaluable for diagnosing intermittent issues by capturing data before and after a trouble code is set. With its compact size of 3.2" L x 2.2" W x 1" H, it's a portable yet powerful solution for comprehensive motorcycle diagnostics and tuning.

Features & Highlights

• Advanced ECM Programming: Adjust critical engine parameters like Automatic Compression Release (ACR), Engine Idle Temperature Management System (EITMS), cruise control, and active exhaust settings for optimized performance.
• Comprehensive Diagnostic Coverage: Read and clear diagnostic trouble codes from ECM, BCM, speedometer, tachometer, and the Anti-Skid Braking System (ABS) for thorough system analysis.
• Security System Management: Reprogram and read key fobs, adjust PINs, and disable fobs, providing full control over your motorcycle's security features.
• Stand-Alone Data Logging: Capture up to one hour of vital engine data, including pre- and post-code information, to pinpoint elusive intermittent issues without a laptop constantly connected.
• Real-Time Data Display & Scopemeter: Monitor live engine data on an instrument panel-style display and utilize dual-channel scopemeter capabilities for detailed waveform analysis.
• Speedometer & Idle Speed Calibration: Recalibrate your speedometer after component changes and, for compatible models, adjust idle speed for testing and tuning purposes.
• Versatile Analog Inputs: Two analog inputs with 0-20 V or ± 200 V range can be used for various measurements, including air/fuel ratio (AFR) analysis.

Technical Specifications

• Type: Twin Scan 4 ABS
• Style: CAN Bus
• Product Name: Diagnostic Scan Tool
• Units: Kit
• Vendor Part Number: 15500
• Compact Size (L x W x H): 3.2" x 2.2" x 1"

Important to Know

• Requires a Windows PC (compatible with Windows XP/7/8/10/11) for display and full functionality.
• Not all features are available for all motorcycle models. Most features are available for models through 2016.
• For 2017 and newer models, idle RPM adjustment and speedometer calibration capabilities are not available.
• All models utilizing the CAN data bus require the six-pin Deutsch style diagnostics connector.
