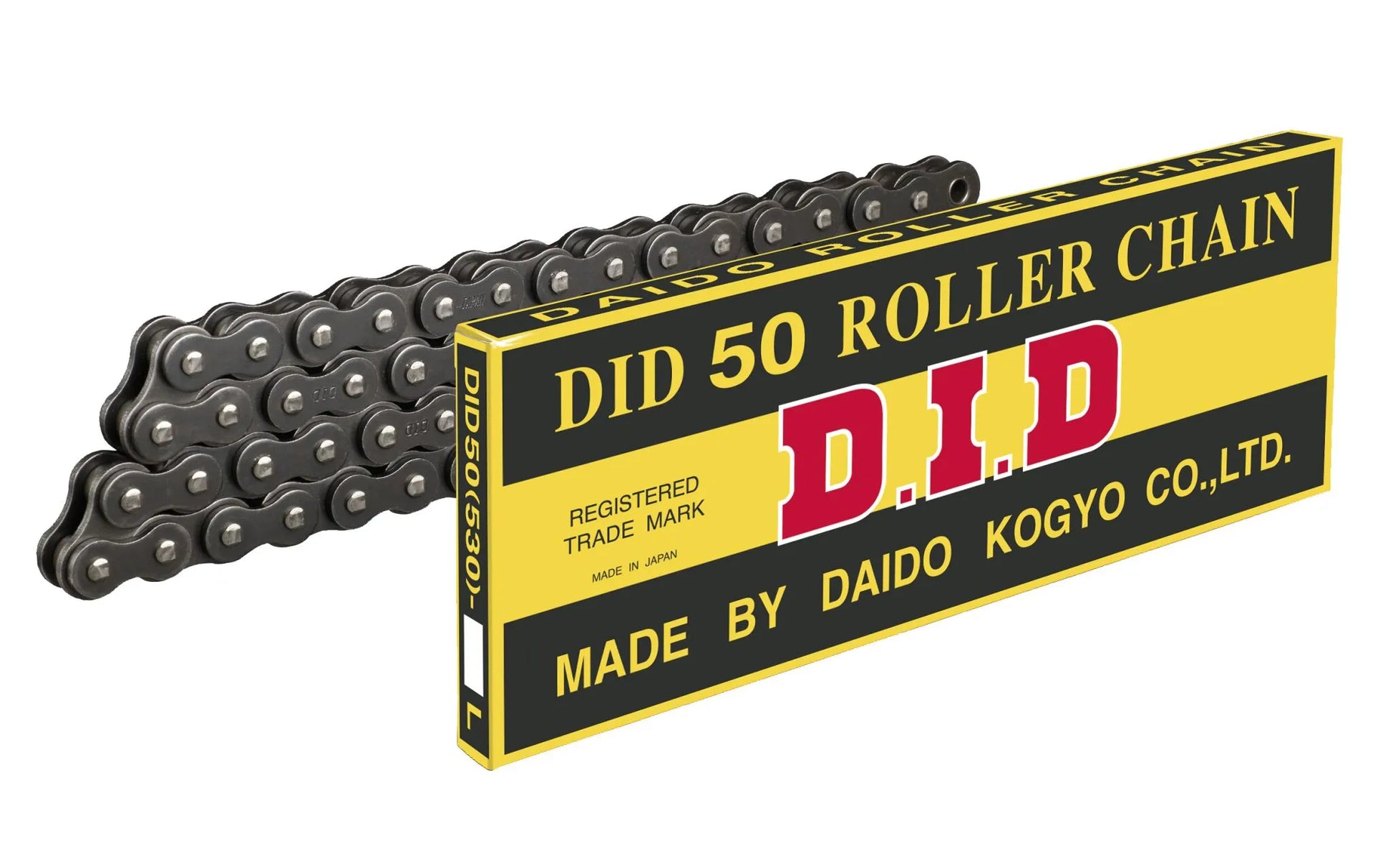

Did 530 Standard Series Drive Chain

The DID 530 Standard Series Drive Chain offers a reliable and cost-effective solution for motorcycles originally equipped with a non-O-ring chain. This chain delivers dependable performance thanks to its robust construction and thoughtful design.

Description

Engineered with special alloy steel, the DID 530 Standard Series drive chain provides exceptional durability and tensile strength, rated at 30.8 kN (6930 lb). The quad-staked pin riveting ensures a secure and robust connection between links, while the extended riveted bushing design minimizes kinking and enhances smooth operation. This chain is pre-stretched at the factory, reducing initial stretch and the need for frequent adjustments. Designed for motorcycles with a maximum engine displacement of 400cc, this 530 standard chain is a great replacement part.

Features & highlights

• Offers a low-cost, high-quality drive chain solution.
• Constructed from special alloy steel for enhanced durability.
• Features quad-staked pin riveting for a strong and reliable connection.
• Extended riveted bushing design minimizes kinking.
• Pre-stretched at the factory to reduce initial adjustment needs.
• Ideal for motorcycles originally using a non-O-ring 530 chain.

Technical specifications

• Brand: DID
• Chain Size: 530
• Chain Type: 530 Standard
• Color/Finish: Steel
• Master Link Connector Type: Clip
• Maximum Engine Displacement (Street): 400 cc
• Number of Links: 104
• Seal Type: Non-Seal
• Tensile Strength: 30.8 kN (6930 lb)
• Weight: 1.06 kg/100 Links

Important to know

This chain originally comes with a clip-type connecting link. Verify compatibility with your motorcycle before installation.
