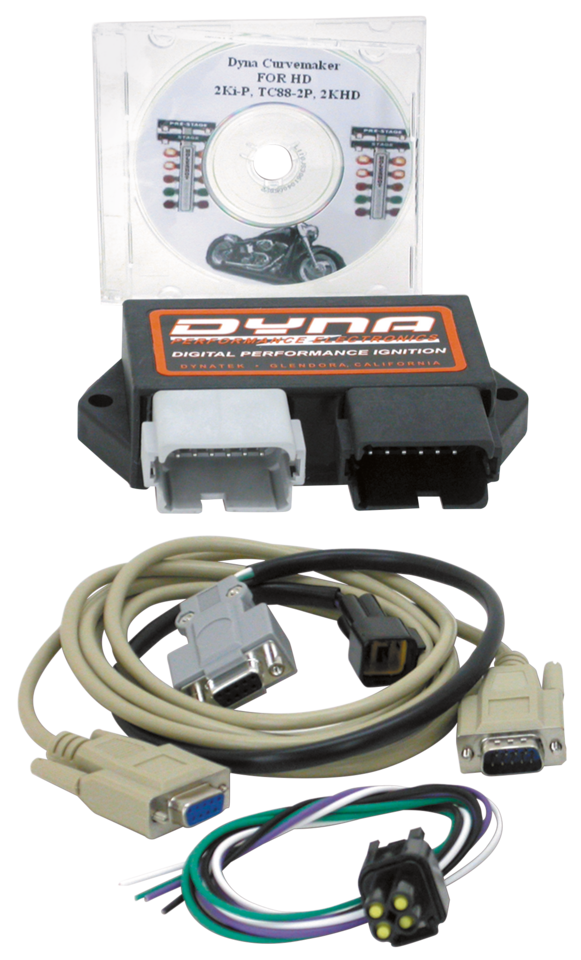

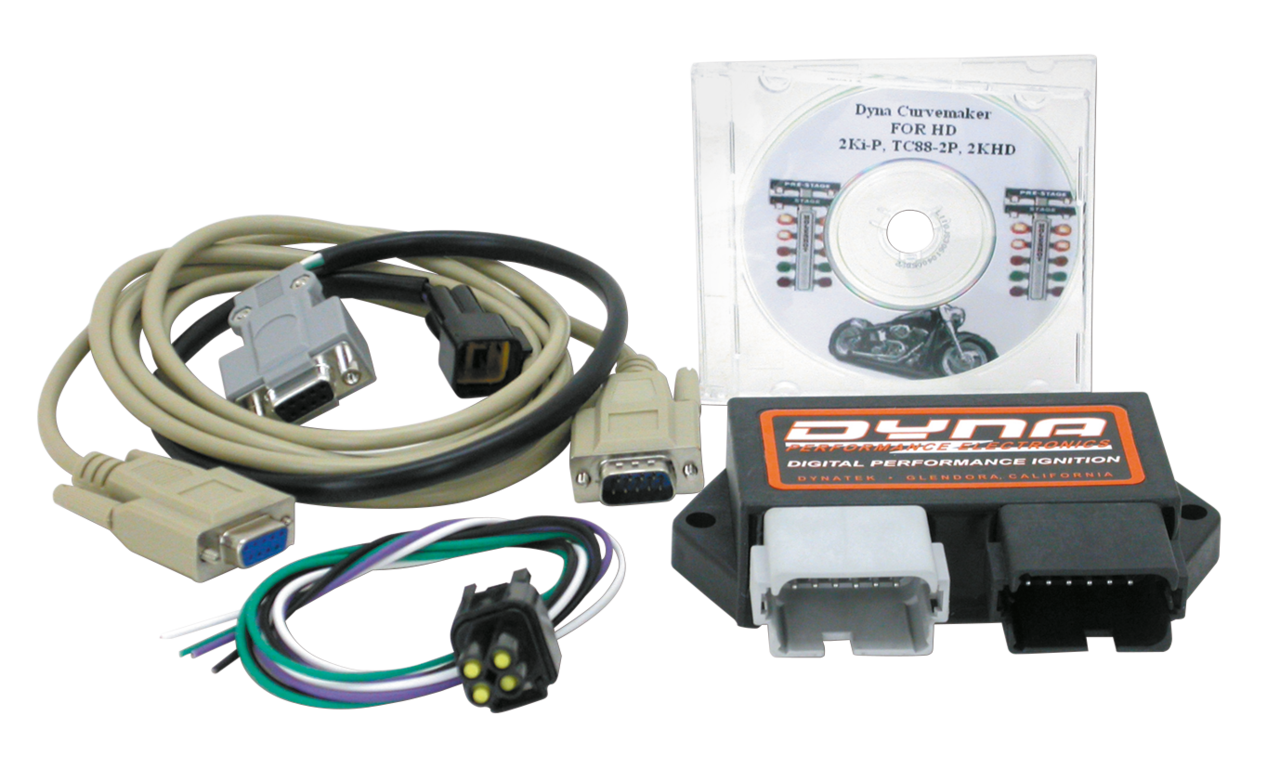

Dynatek Twin Cam Ignition Module - Single Fire

Dynatek's digital system for carbureted Twin Cam models features the latest digital electronic innovations. It is a Single Fire, fully Programmable Performance Ignition that replaces the OEM system and offers you the possibility to set the ignition to the type of engine you are using as well as the way you are riding your motorcycle.

A few of the features are:
•All functions with full digital accuracy
•Compatible with stock ignition coils as well as low resistance perfor­mance and race coils (3 Ohm to 0.7 Ohm)
•Coil current constantly monitored to provide constant full spark energy
•Uses stock trigger sensors
•Reverse battery and spike protection is built in
•One year warranty

Dipswitch selectable are:
•6 Programmable advance curves, divided in 3 groups for best perfor­mance of stock to slightly modified motors, Heavily modified motors, Insanely modified motors
•8 Rev. Limiters setting, from 5750 RPM to 7250 RPM in 250 RPM steps

Program selectable are:
Programming kit (ZPN730602) gives access to:
•8 point fully definable wide open throttle curve
•8 point fully definable part throttle curve
•Rev limiter programmable in 50 RPM steps
•Programmable from 0 to 5 dead cranking revs for easier starting
•Rear cylinder offset from -10 to +10 degrees
•Security Lock Out
•Single or Dual fire

Data recording options:
•Total engine hours
•Time wide open throttle
•Longest time operating at wide open throttle
•Maximum RPM
•Seconds near REV limit
•Number of engine starts

Note: Will not work with Fuel Injection equipped models.

Ignition Module, fits 1999 thru 2003 models

Dynatek TC88-2P digital ignition TC99-03
