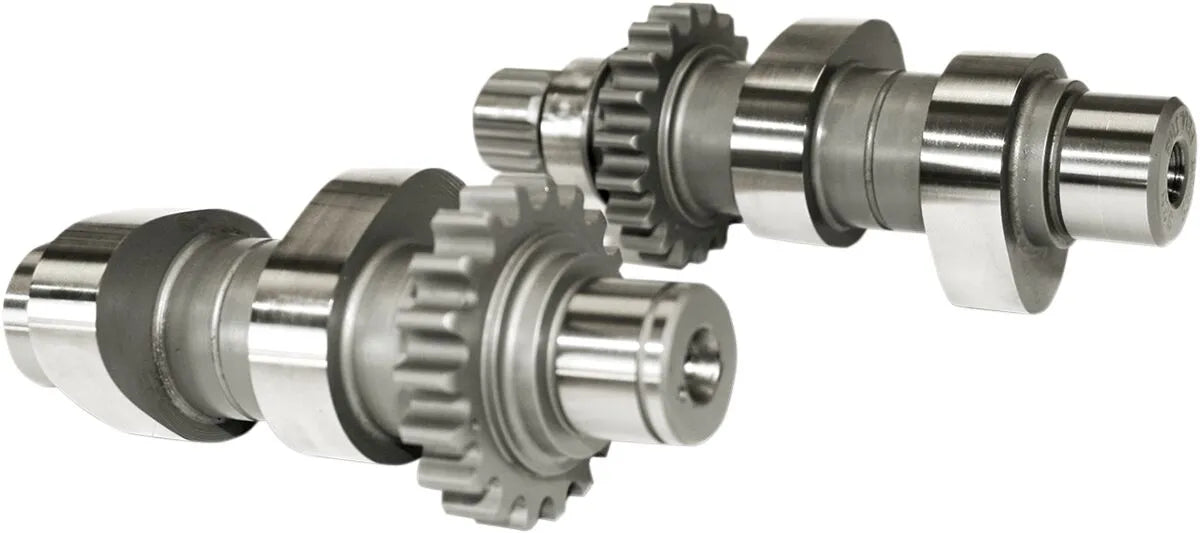

Feuling Reaper 594 Camshaft - 1303

Unleash the full potential of your engine with the Feuling Parts Reaper® 594 Cam. Designed for superior torque and horsepower, this camshaft delivers exhilarating performance across a wide RPM range.

Description

The Reaper® 594 Cam is engineered for large displacement 103", 110", and 124" engines in heavy bikes, providing exceptional torque from 2200-6250 RPM. For smaller, high-revving 95" engines in lighter bikes, this cam delivers impressive horsepower gains from 2500-6800 RPM. Large displacement engines benefit from increased compression ratios, while smaller displacements require it to achieve optimal performance. The Feuling Parts Reaper® 594 Cam is proudly made in the USA, ensuring top-tier quality and precision engineering. Upgrade your engine's performance with this high-performance camshaft and experience the difference.

Features & highlights

• Delivers a superior torque band for large displacement engines (103", 110", 124").
• Provides excellent horsepower gains for heavy bikes (2200-6250 RPM).
• Optimized for smaller, high-revving 95" engines in lighter bikes (2500-6800 RPM).
• Enhances performance with increased compression ratios in large displacement engines.
• Made in the USA for superior quality and reliability.
• The Reaper 594 cam maximizes performance across a wide RPM range.

Technical specifications

• Brand: Feuling Parts
• Product Name: Camshaft
• Grind: 594 Series
• Type: Chain
• Intake Duration: 255°
• Intake Open: 19°
• Intake Close: 56°
• Intake Lift: 0.594"
• Intake Lobe Centerline: 108.5°
• Intake Lift at TDC: 0.190"
• Exhaust Duration: 260°
• Exhaust Open: 64°
• Exhaust Close: 16°
• Exhaust Lift: 0.604"
• Exhaust Lobe Centerline: 114°
• Exhaust Lift at TDC: 0.167"

Important to know

The 594 cam requires high-performance valve springs, pushrods, lifters, and carburetor or throttle body work. A performance exhaust, intake, and clutch are also required for optimal performance.
