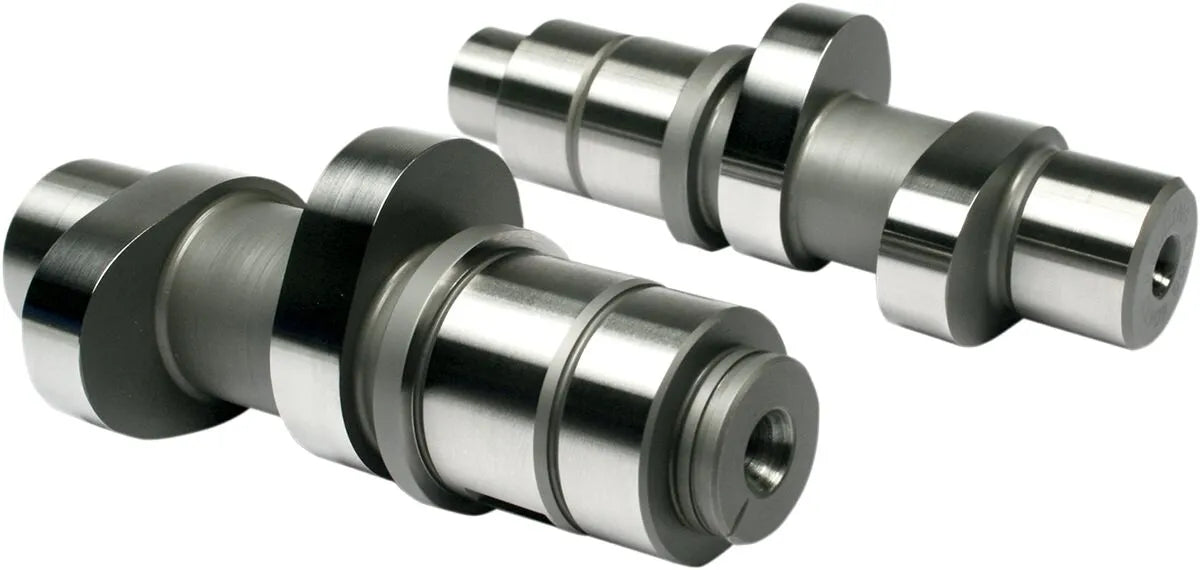

Feuling Reaper 594 Camshaft - 1304

The Feuling Parts Reaper® 594 Cam is a fierce performer designed for a wide range of engine sizes. This camshaft delivers a superior torque band and excellent horsepower gains, making it ideal for both heavy and light bikes. Experience enhanced throttle response and power across the RPM range with this high-quality, American-made cam.

Description

The Reaper® 594 Cam from Feuling Parts is engineered to maximize performance in large displacement engines (103", 110", and 124") by providing a significant torque boost between 2200-6250 rpm. For smaller, high-revving 95" engines in lighter bikes, this cam unleashes impressive horsepower from 2500-6800 RPM. Larger displacement engines benefit from increased compression ratios, which are essential for smaller displacements to realize the cam's full potential. The 0.594" lift maximizes airflow, boosting engine efficiency and output. Built to exacting standards, the Reaper® 594 ensures reliability and long-lasting performance. Enhance your motorcycle's capabilities with this premium camshaft.

Features & highlights

• Delivers a superior torque band for large displacement engines (103", 110", 124").
• Provides excellent horsepower gains for heavy bikes in the 2200-6250 rpm range.
• Unleashes impressive horsepower for smaller, high-revving 95" engines (2500-6800 RPM).
• Optimized for both heavy and light bikes, enhancing throttle response and power.
• Requires high-performance valve springs, pushrods, and lifters for optimal operation.
• Designed to work seamlessly with performance exhausts, intakes, and clutches.
• Proudly made in the USA, ensuring top-tier quality and reliability.

Technical specifications

• Brand: Feuling Parts
• Product Name: Camshaft
• Grind: 594 Series
• Type: Gear
• Intake Duration: 255°
• Intake Lift: 0.594"
• Intake Open: 19°
• Intake Close: 56°
• Intake Lobe Centerline: 108.5°
• Intake Lift at TDC: 0.190"
• Exhaust Duration: 260°
• Exhaust Lift: 0.604"
• Exhaust Open: 64°
• Exhaust Close: 16°
• Exhaust Lobe Centerline: 114°
• Exhaust Lift at TDC: 0.167"

Important to know

This 594 cam requires the installation of high-performance valve springs, pushrods, and lifters. Additionally, carburetor or throttle body modifications, a performance exhaust system, intake upgrades, and a performance clutch are necessary to achieve optimal performance gains.
