Hastings 1200 +.030 Piston Rings for Harley Davidson Electra

Upgrade your Harley Davidson 1200 engine with the high-performance Hastings 1200 +.030 Piston Rings. Engineered for superior durability and optimal engine function, this complete set ensures your classic Electra Glide 1200 runs efficiently and powerfully.

Description

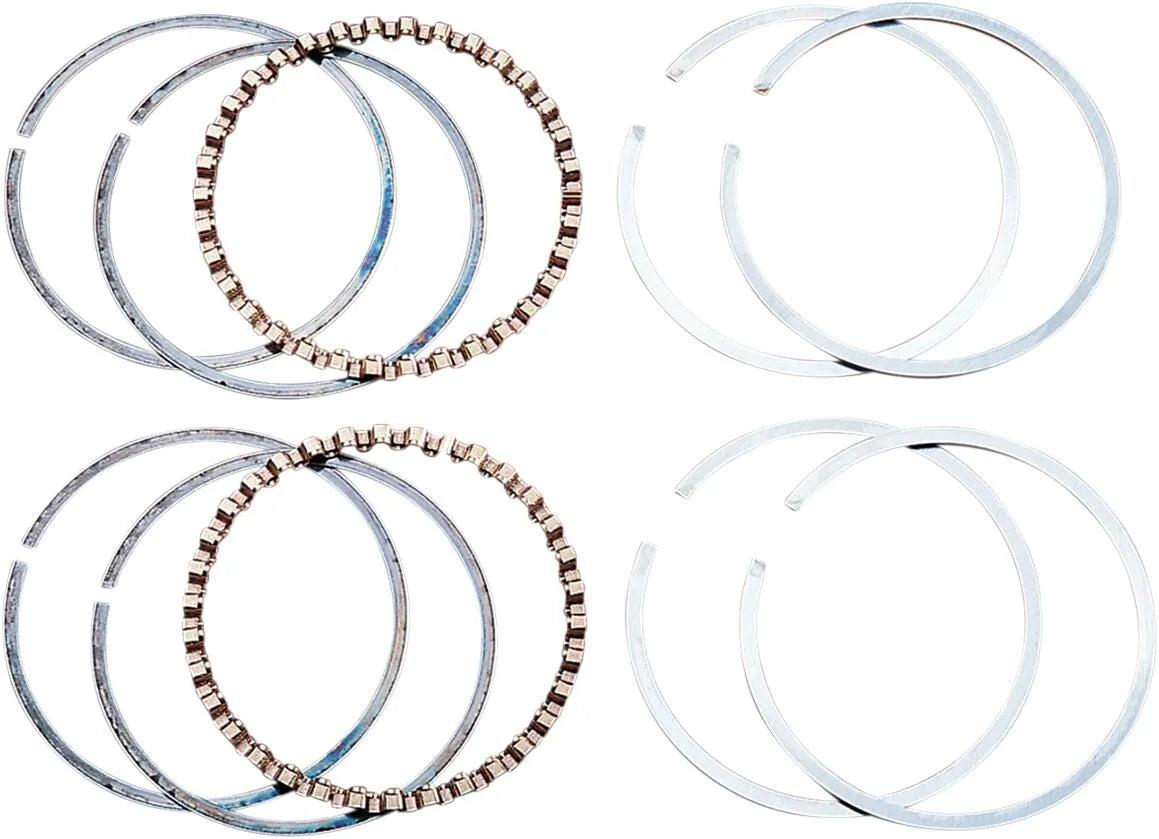

Restore peak performance to your Harley Davidson Electra Glide 1200 (1941-1980) with these precision-engineered Hastings 1200 +.030 Oversize Piston Rings. This comprehensive set includes top compression rings, second compression rings, and oil control rings, providing enough components for two pistons. The top compression rings feature a specialized barrel face design, significantly enhancing heat transfer between the piston and cylinder wall while effectively controlling combustion chamber gases. This allows the piston to efficiently transfer the energy of expanding combustion gases to the crankshaft, maximizing power output.

The second compression rings utilize a reverse torsional taper face, promoting superior side sealing to prevent oil from being forced under and behind the ring. This innovative design leads to better oil economy and reduced consumption. Completing the set are the three-piece Flex Vent oil control rings. Their unique three-piece construction with a small cross-sectional area ensures better conformability to the bore, providing uniform pressure through four steel rails and two expanders for positive and reliable oil control. Proudly made in the USA, these Hastings piston rings are built to meet the demanding standards of motorcycle enthusiasts.

Features & Highlights

• Optimized Combustion Control: Barrel Face top compression rings efficiently transfer heat and manage combustion gases for maximum power.
• Enhanced Oil Economy: Reverse Torsional Taper Face second compression rings provide superior side sealing, reducing oil consumption.
• Reliable Oil Control: Three Piece Flex Vent oil control rings ensure consistent pressure and conformability for positive oil management.
• Complete Engine Restoration: Includes a full set of top, second, and oil control rings for two pistons, simplifying your rebuild.
• Precision Engineering: Designed for exact fitment and high-performance operation in Harley Davidson 1200 engines.
• Proudly Made in the USA: Manufactured with high-quality materials and craftsmanship for lasting durability.

Technical Specifications

• Brand: Hastings
• Part Type: Piston Rings
• Engine Displacement: 1200cc
• Oversize: +.030
• Top Compression Ring Type: Barrel Face
• Second Compression Ring Type: Reverse Torsional Taper Face
• Oil Control Ring Type: Three Piece Flex Vent
• Quantity: Enough rings for two pistons
• Country of Origin: USA
• Vehicle Fitment: Harley Davidson Electra Glide FL 1200, Electra Glide FLH 1200 (1941-1980)
• EAN: 0075538084303

Important to Know

• Special attention to the top ring end gap is required. Please refer to the instructions furnished with your piston for correct ring installation.
• Pistons are not included; this product provides rings for two pistons.
