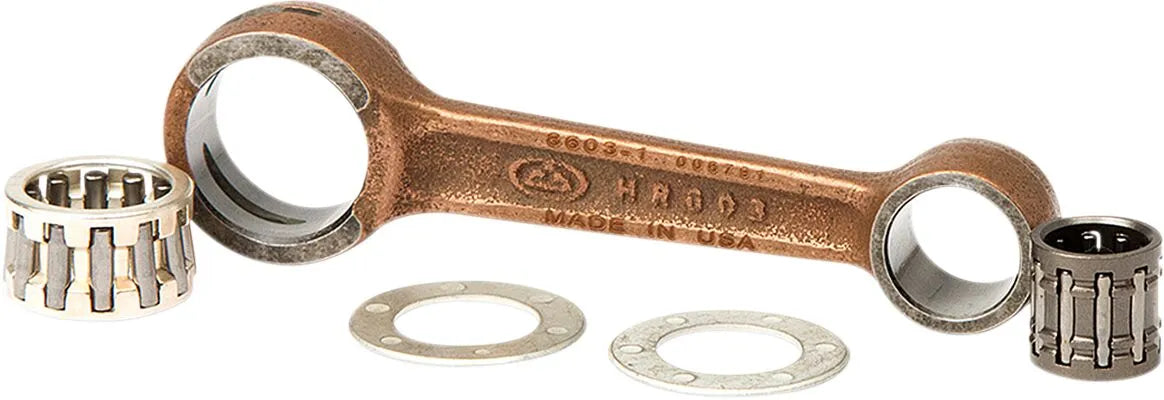

Hot Rods Connecting Rod Kit - 8603

Upgrade your engine's performance and reliability with the Hot Rods Connecting Rod Kit. This heavy-duty kit is designed as an OE replacement, providing superior strength and durability for demanding applications. Built to withstand high RPMs and deliver consistent performance, the Hot Rods connecting rod is a must-have for any serious engine builder.

Description

The Hot Rods Connecting Rod Kit is engineered for exceptional performance and longevity. Constructed from certified 8620 AISI steel, these connecting rods offer superior strength and resistance to deformation. The crankpins are manufactured from hot-rolled ASTM 4115 steel, case hardened to 58-62Rc for ultimate durability. Featuring the latest caged needle roller bearing designs, this kit ensures high RPM longevity and reduced friction. The uniquely designed big end incorporates strategically located side scalloping and vent slots to minimize bearing race distortion at high RPM. Small ends are double drilled to provide extra lubrication and cooling to the wrist pin bearing, critical for pistons with crowns close to the wrist pin. Shot-peening eliminates surface stress risers, while double honing produces an ultra-round bearing surface for reliability. Compatible with both Hot Rods and OE crankshafts, this kit offers versatile installation options.

Features & highlights

• Heavy-duty OE replacement for enhanced reliability.
• Crafted from certified 8620 AISI steel for superior strength.
• Crankpins made from hot-rolled ASTM 4115 steel, case hardened to 58-62Rc.
• Optimized big end design with scalloping and vent slots minimizes bearing race distortion.
• Small ends are double drilled for enhanced wrist pin bearing lubrication.
• Shot-peened finish eliminates surface stress risers.
• Compatible with Hot Rods and OE crankshafts for versatile use.

Technical specifications

• Brand: Hot Rods
• Product Name: Connecting Rod Kit
• Material: 8620 Steel
• Engine Type: 4-Cycle
• Displacement: 80cc

Important to know

Made in the USA. Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
