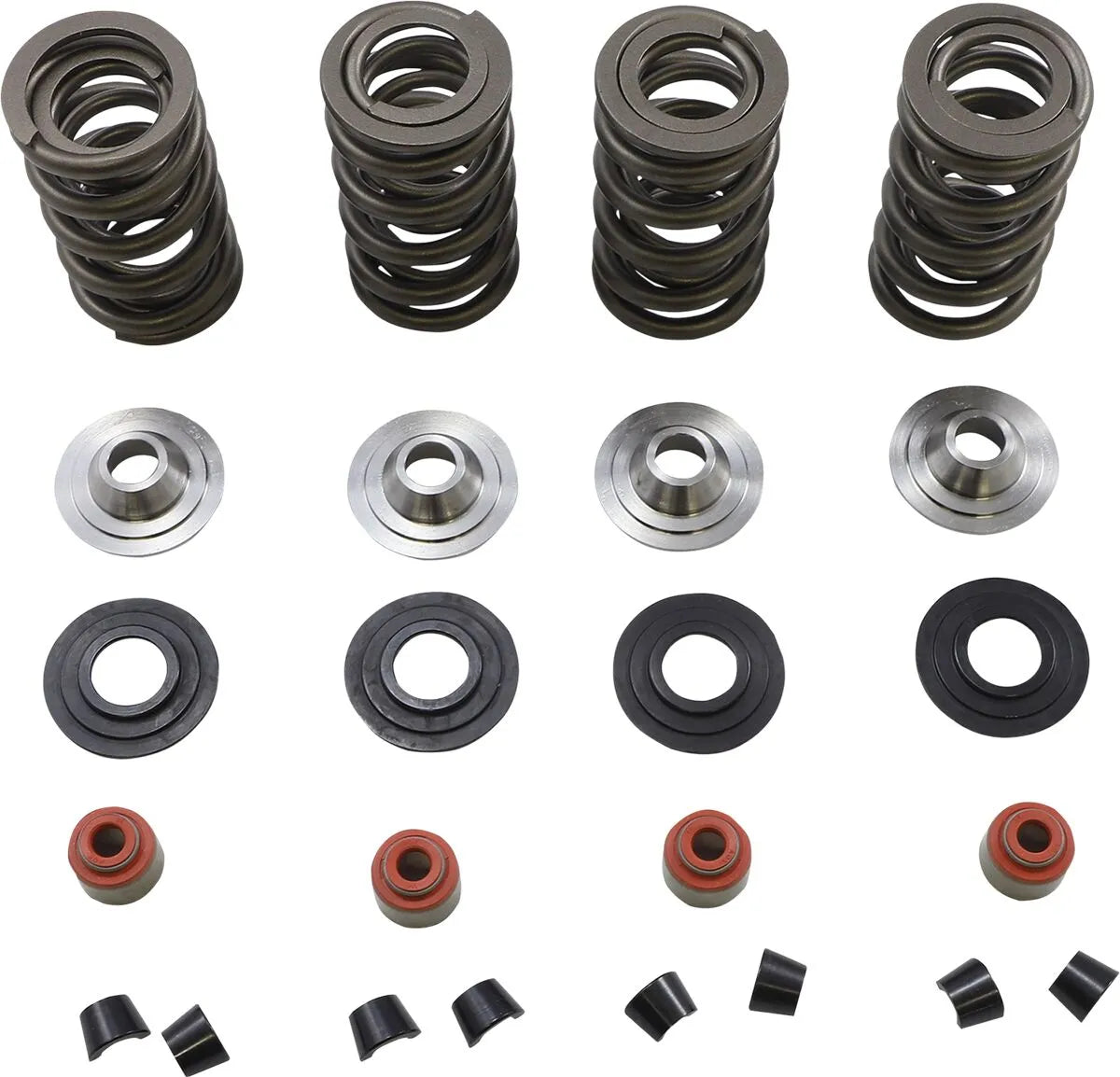

Kibblewhite Racing Valve Spring Kit - Chromium Silicon - 20-23650

Upgrade your engine's valvetrain with the Kibblewhite Racing Valve Spring Kit. This kit is engineered to deliver optimal performance and reliability for demanding racing applications. Manufactured in the USA, this complete kit provides everything needed to enhance your engine's capabilities.

Description

The Kibblewhite Racing Valve Spring Kit is meticulously designed, considering crucial parameters such as cam profiles, harmonics, spring natural frequency, valvetrain mass, required pressure, wire stress, fatigue life, and engine RPM. These valve springs are progressively wound utilizing Kobe super-clean, chromium silicon (CrSi) based wire. The wire undergoes heat treatment and shot peening to enhance durability and resilience. The kit is designed for both intake and exhaust valves, ensuring comprehensive valvetrain enhancement. With a spring lift of 0.675", these springs provide the necessary clearance for high-performance camshafts. The open pressure is rated at 450 lb, while the seat pressure is 185 lb, optimizing valve control and reducing valve float at high RPM. Upgrade your valvetrain with confidence using Kibblewhite's high-quality racing valve spring kit.

Features & highlights

• Optimized for high-performance racing applications.
• Progressively wound springs made from Kobe super-clean, chromium silicon (CrSi) wire.
• Heat treated and shot peened for enhanced durability.
• Complete set for one engine, covering both intake and exhaust valves.
• Designed to withstand high engine RPM and extreme valvetrain stress.
• Manufactured in the USA for superior quality control.

Technical specifications

• Brand: Kibblewhite
• Vendor Part Number: 20-23650
• Application: Exhaust, Intake
• Collar Material: Titanium
• Material: Chromium Silicon Alloy
• Product Name: Spring Kit
• Spring Lift: 0.675"
• Spring Open Pressure: 450 lb
• Spring Seat Pressure: 185 lb
• Type: Valve
• Units: Kit

Important to know

This kit contains all the valve springs needed for one engine. No additional components are included.
