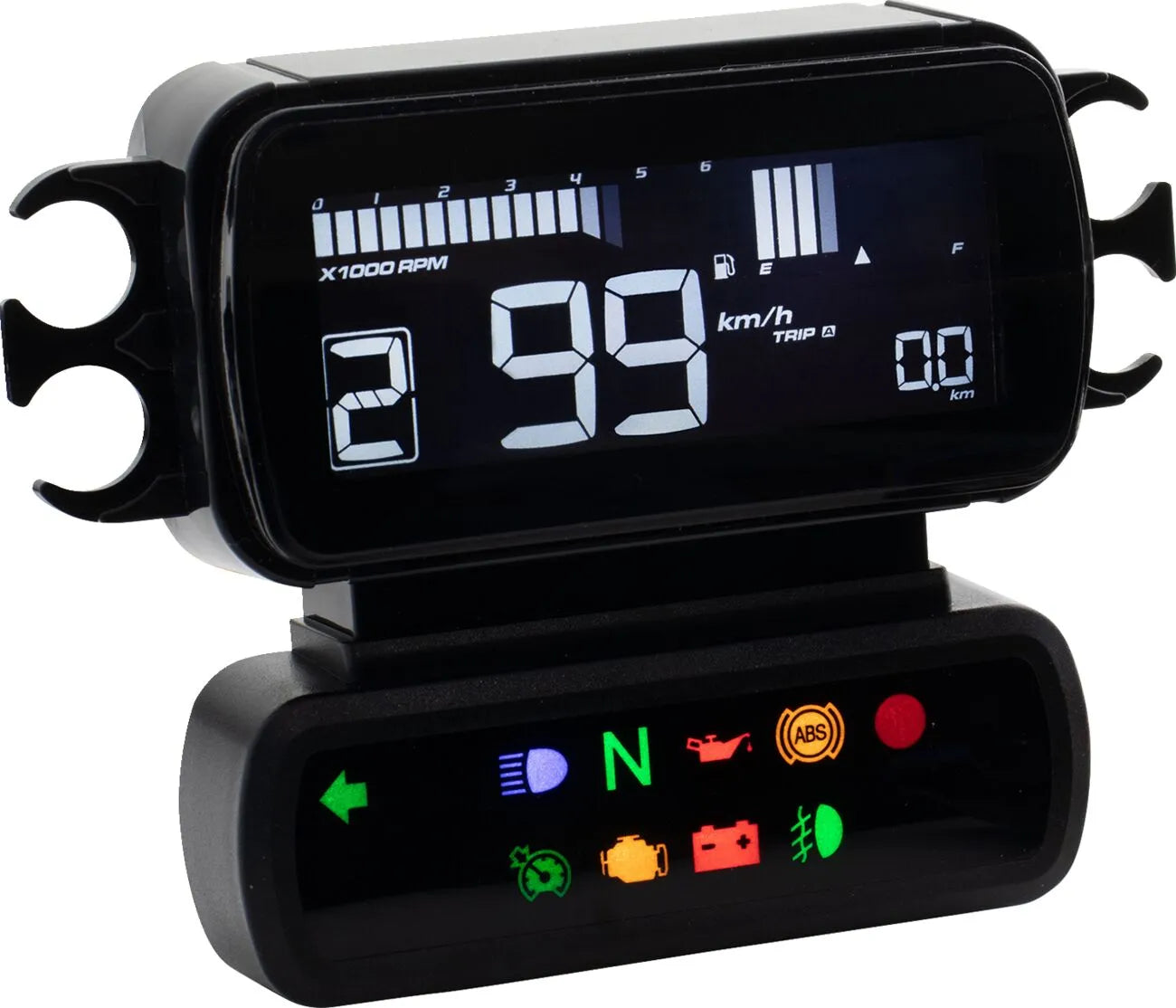

Koso D2 Lcd Multifunction Meter

Upgrade your motorcycle's instrumentation with the Koso North America D2 LCD Multifunction Meter. This high-quality, plug-and-play meter provides a wealth of information in a compact and stylish package. Keep track of your bike's vital signs with ease and precision.

Description

The Koso D2 LCD Multifunction Meter is designed for enthusiasts who demand comprehensive data and a clean aesthetic. Featuring an 8-color changeable LCD display, this meter seamlessly integrates with your motorcycle's CANBUS system for direct readings. The tachometer/speedometer combination includes a programmable shift light and gear indicator, ensuring optimal performance and control. Monitor engine temperature, battery voltage, and tire pressure, along with a complete system of indicator lights to stay informed about your bike's critical functions. Installation is simplified with a direct plug-in to the stock harness. The meter is designed to mount below a cutout top handlebar clamp for a streamlined appearance (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on your application).

Features & highlights

• Equipped with a vibrant 8-color changeable LCD display for customizable viewing.
• Provides tachometer, speedometer, gear indicator, and programmable shift light for comprehensive performance monitoring.
• Monitors vital signs such as engine temperature, battery voltage, and tire pressure.
• Directly plugs into the stock harness and works with the CANBUS system for easy installation.
• Designed for sleek mounting below the handlebar clamp (may require additional parts).
• Offers a wide display range from 0-124 mph and an effective temperature range of -4°F to 185°F.

Technical specifications

• Brand: Koso North America
• Type: Multi-Function Speedometer
• Display range: 0-199 kph
• Effective temperature range: -4°F-185°F (-20°C-85°C)
• Voltage: 12VDC
• Length: 3-7/16" (88 mm)
• Width: 1-1/16" (27 mm)
• Depth: 2-5/8" (66 mm)
• Face Color: Black
• Housing Color: Black

Important to know

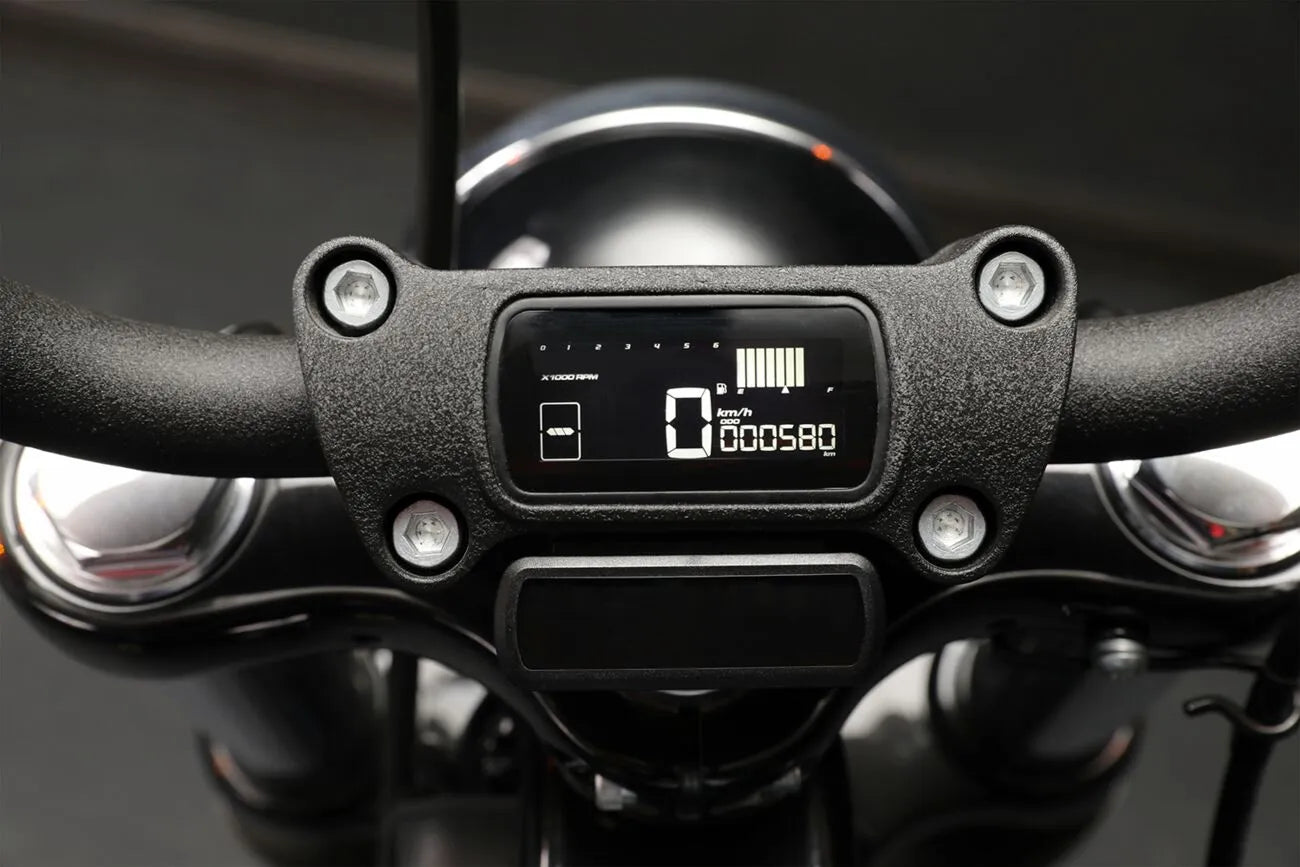

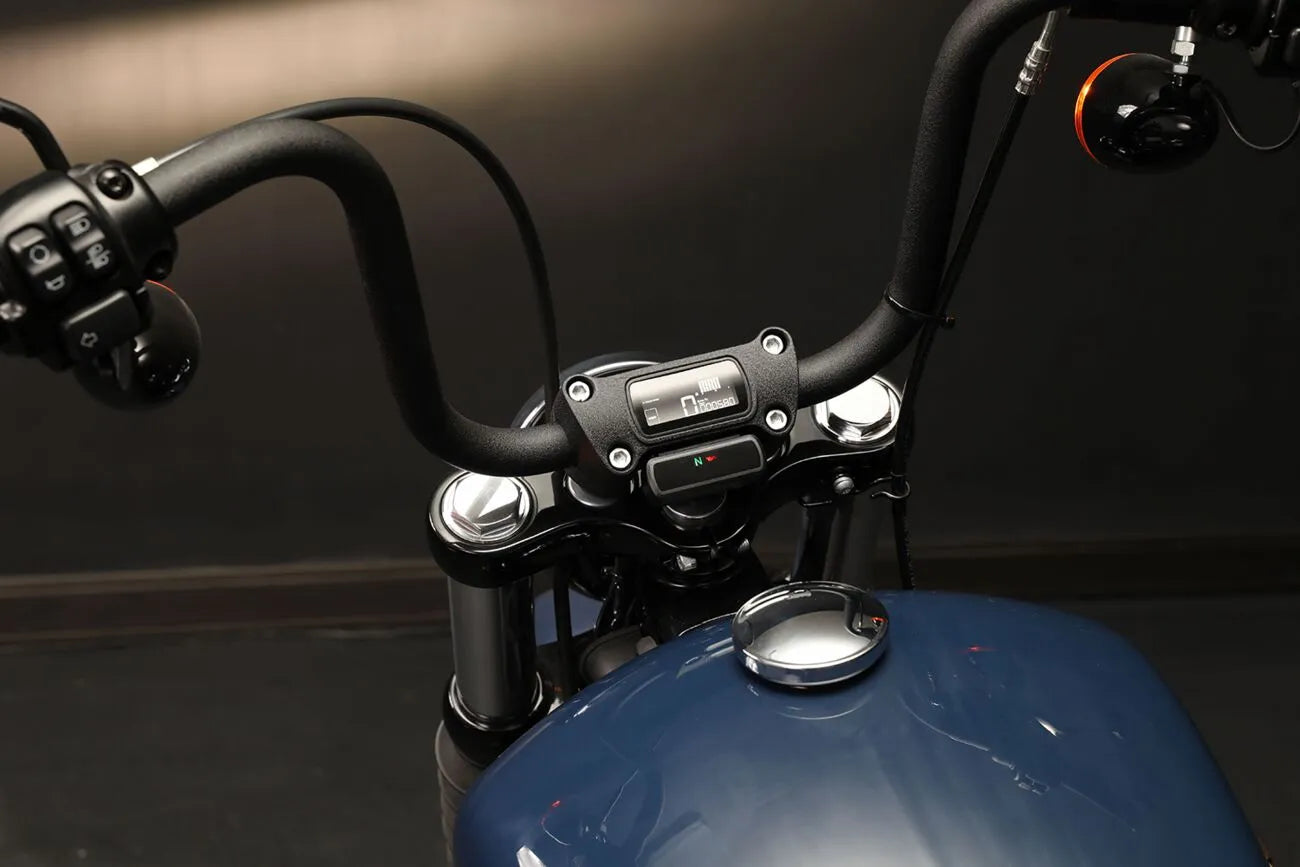

The installation images are for demonstration purposes only; the mounting plate is not included. XL models may require the purchase of a separate fuel level sensor kit (OEM PART #6120008) for the fuel meter to function properly. Depending on your motorcycle model and handlebar configuration, a handlebar riser kit with a gauge cutout or a gauge relocation kit may be necessary for proper installation.
