Koso D2 Digital Multi-Function Gauge - mph - BA080030

The Koso North America D2 LCD Multifunction Meter is a high-quality, plug-and-play gauge designed to provide riders with essential information at a glance. This meter seamlessly integrates into your motorcycle's existing system, offering a blend of style and functionality. Stay informed and in control with this advanced digital instrument.

Description

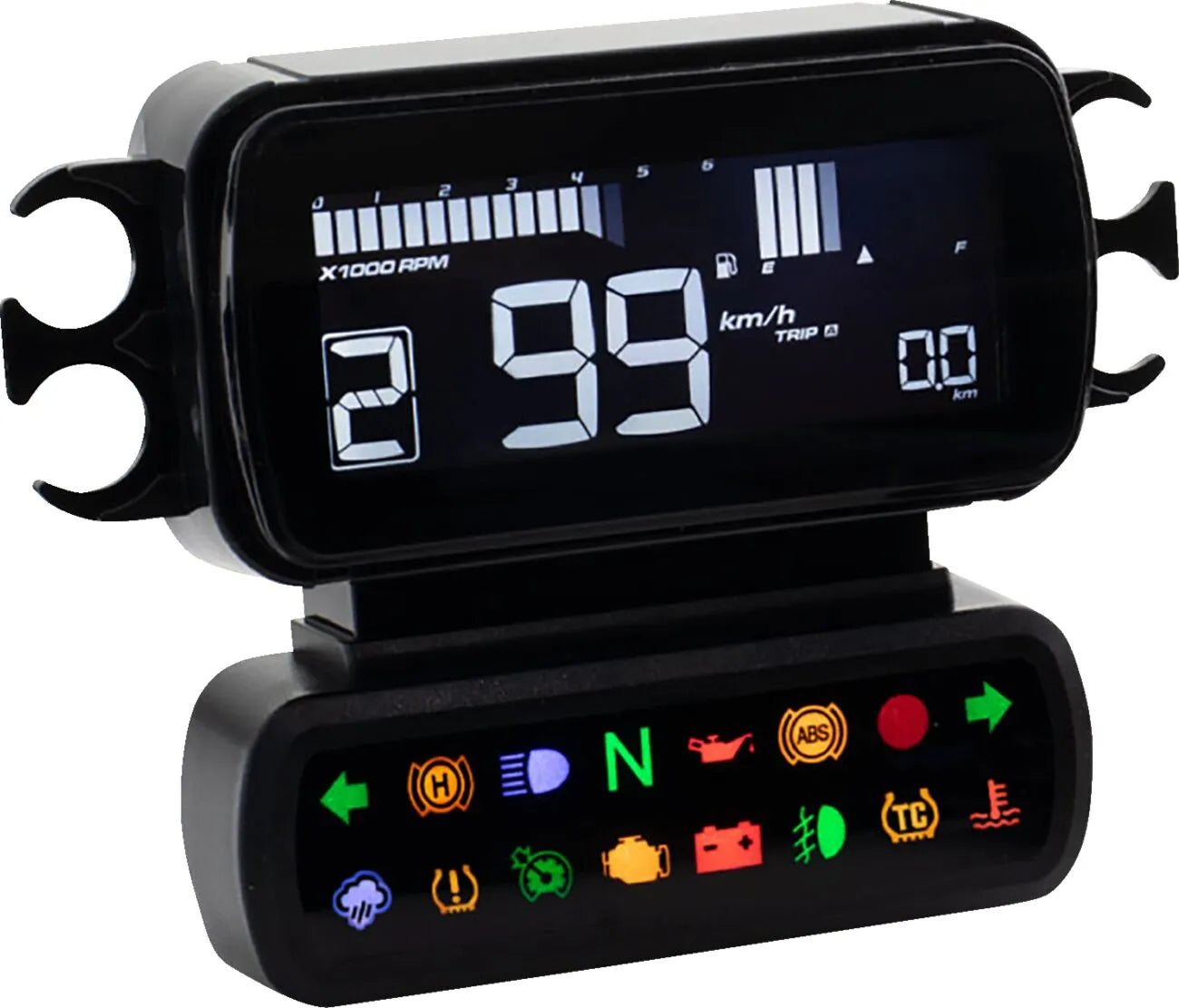

This Koso D2 Multifunction Meter features an 8-color changeable LCD display for customized aesthetics and improved visibility. The tachometer/speedometer combination, complete with a programmable shift light and gear indicator, ensures you have all the necessary performance data. Monitor engine temperature, battery voltage, and tire pressure, along with a comprehensive suite of indicator lights for vital signs. Designed for easy installation, the meter plugs directly into the stock harness and works seamlessly with the CANBUS system. Its compact design allows for mounting below the cutout top handlebar clamp, offering a sleek and integrated look. Note that depending on your bike, a handlebar riser kit with a gauge cutout or a gauge relocation kit may be required.

Features & highlights

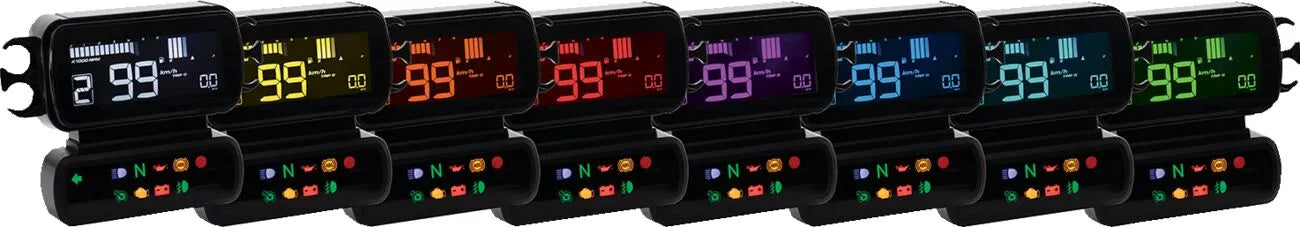

• Equipped with a vibrant 8-color changeable LCD display for personalized aesthetics.
• Integrated tachometer/speedometer with programmable shift light and gear indicator.
• Displays vital information including engine temperature, battery voltage, and tire pressure.

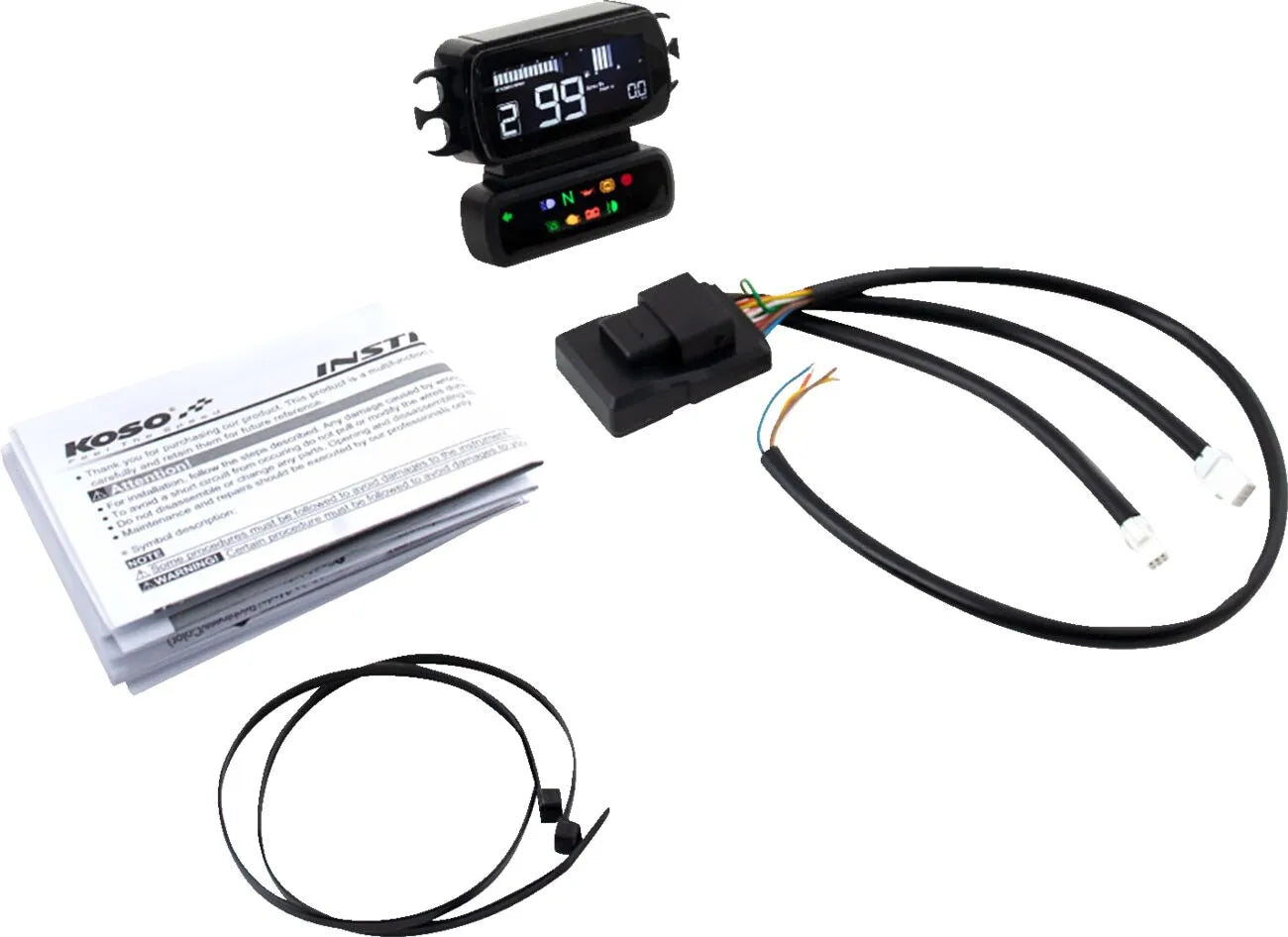

• Easy plug-and-play installation that connects directly to the stock harness and CANBUS system.

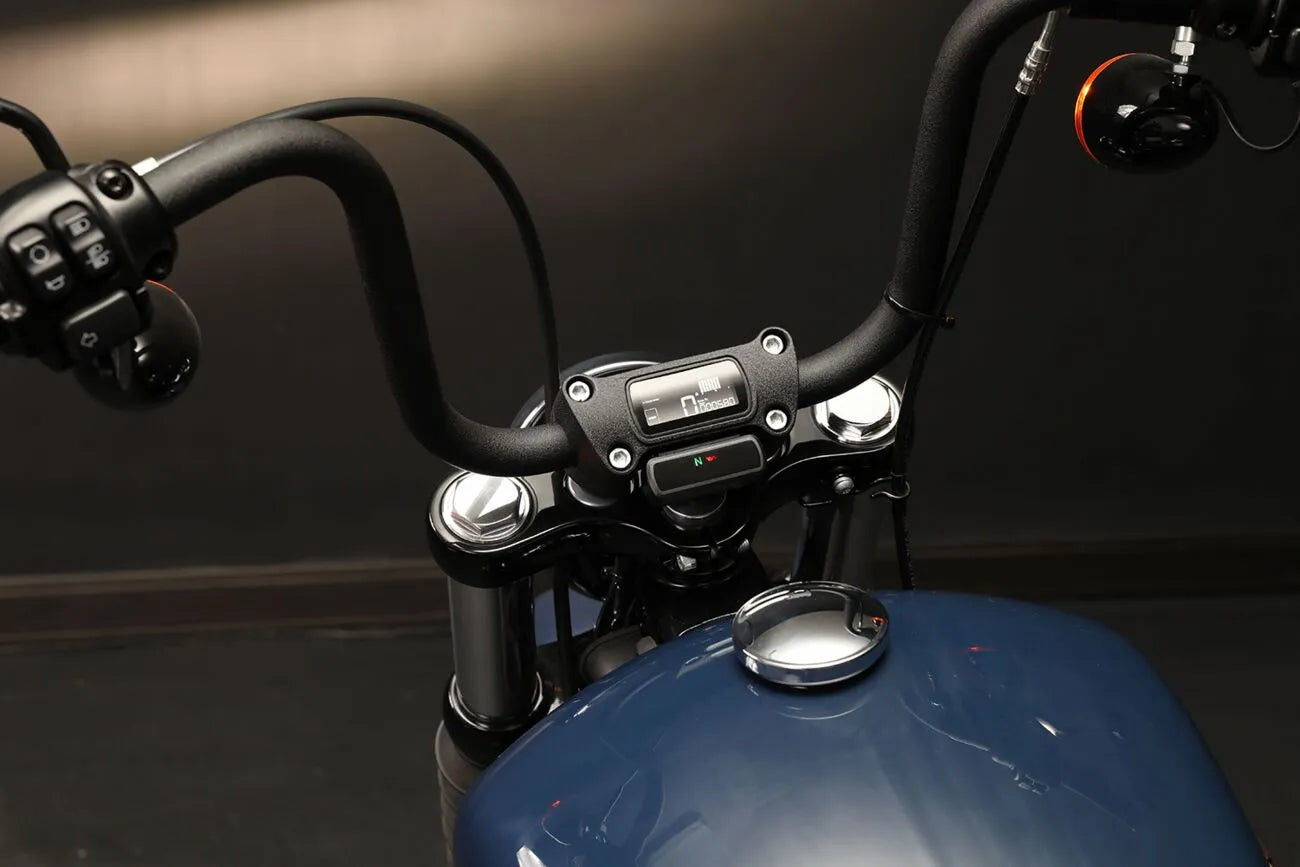

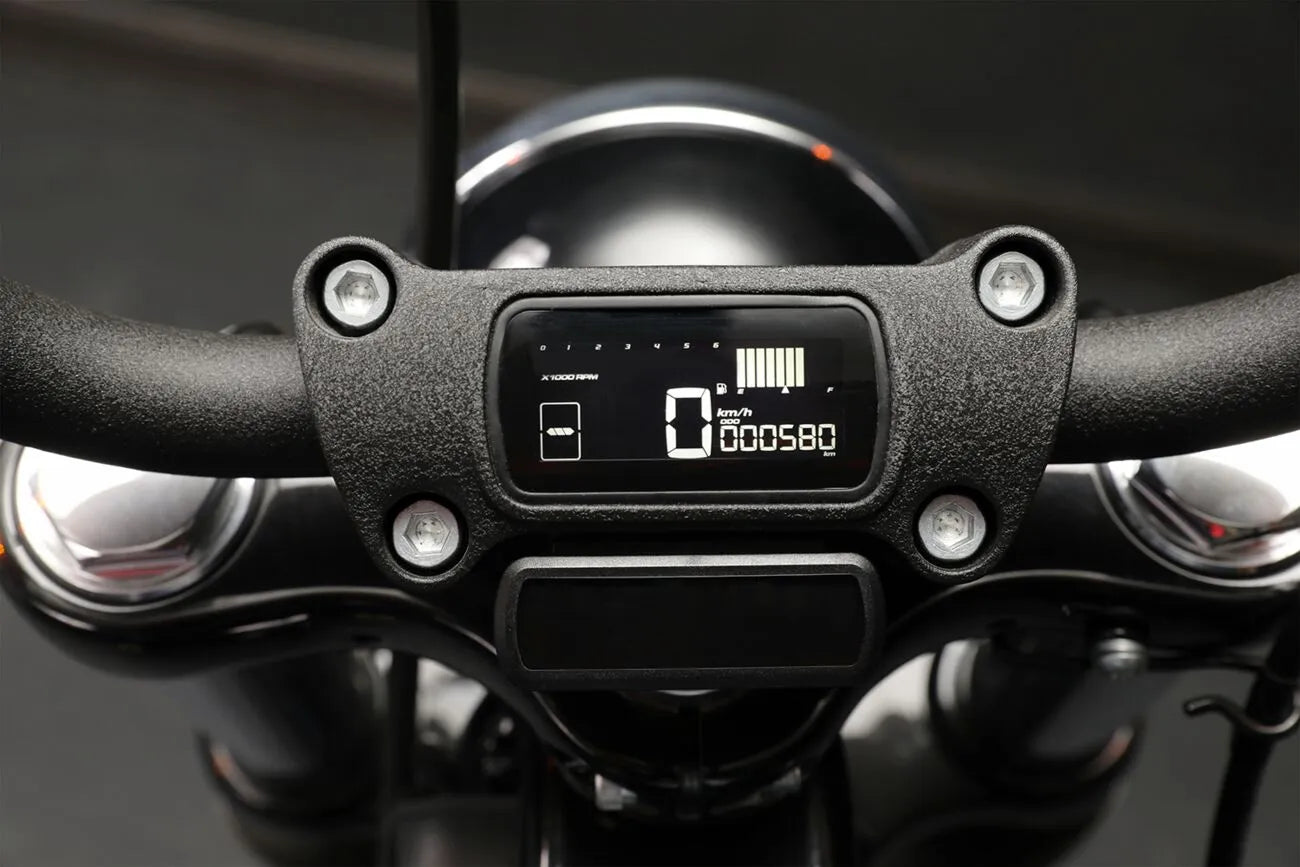

• Compact design for mounting below the handlebar clamp, providing a clean, custom look.
• Effective temperature range: -4°F to 185°F (-20°C to 85°C).

Technical specifications

• Brand: Koso North America
• Product Name: Gauge
• Type: Multi-Function Speedometer
• Face Color: Black
• Housing Color: Black
• Display range: 0-124 mph
• Calibration: 0 kph - 199 kph
• Voltage: 12VDC
• Length: 3-7/16" (88 mm)
• Width: 1-1/16" (27 mm)
• Depth: 2-5/8" (66 mm)

Important to know

Installation images are for demonstration purposes only; the mounting plate is not included. XL models may require the purchase of a separate fuel level sensor kit (OEM PART #6120008) for the fuel meter to function properly.
