Koso HD-03 Set Touring 2014-2023 – Gauges & Dashes

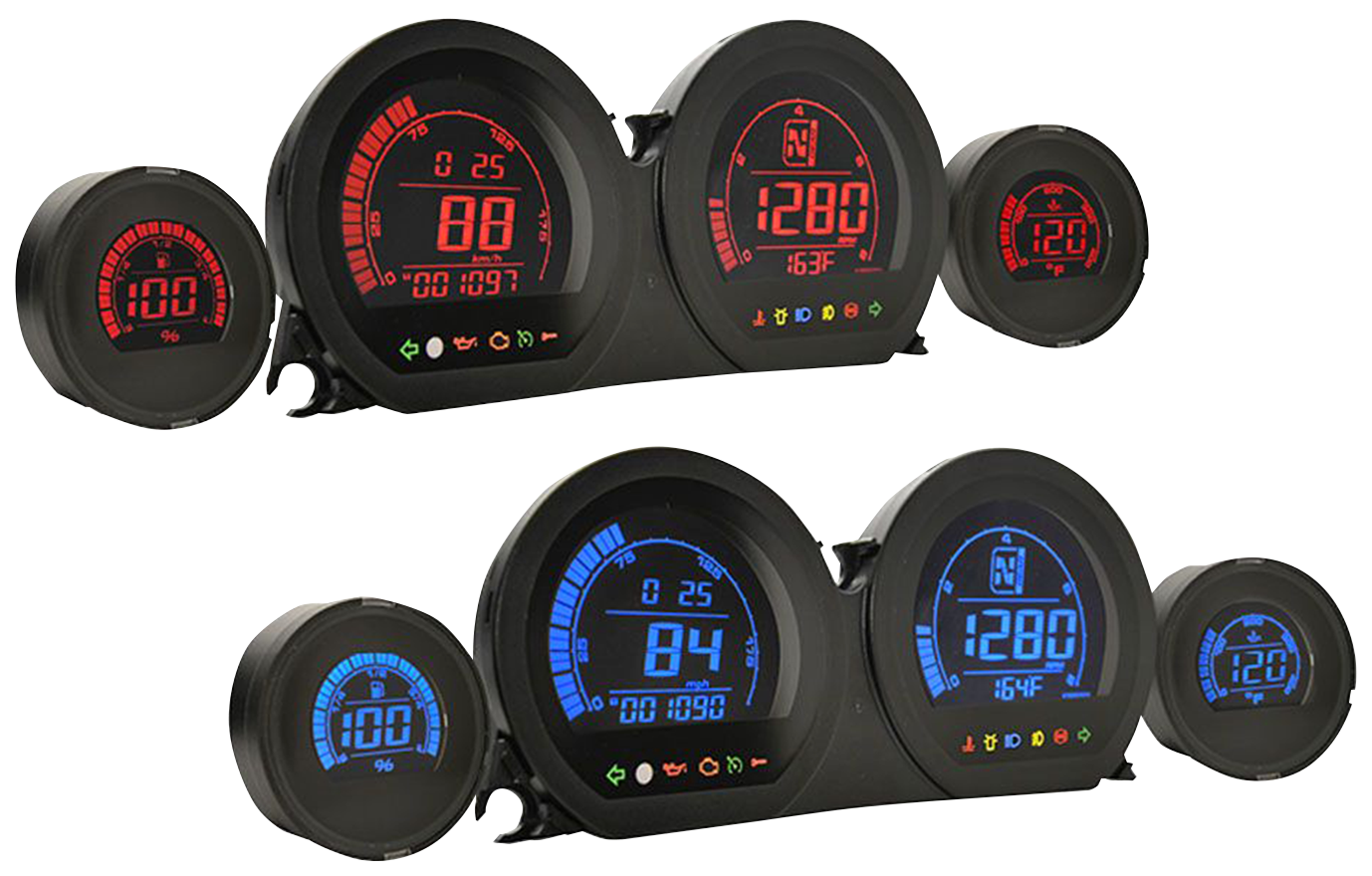

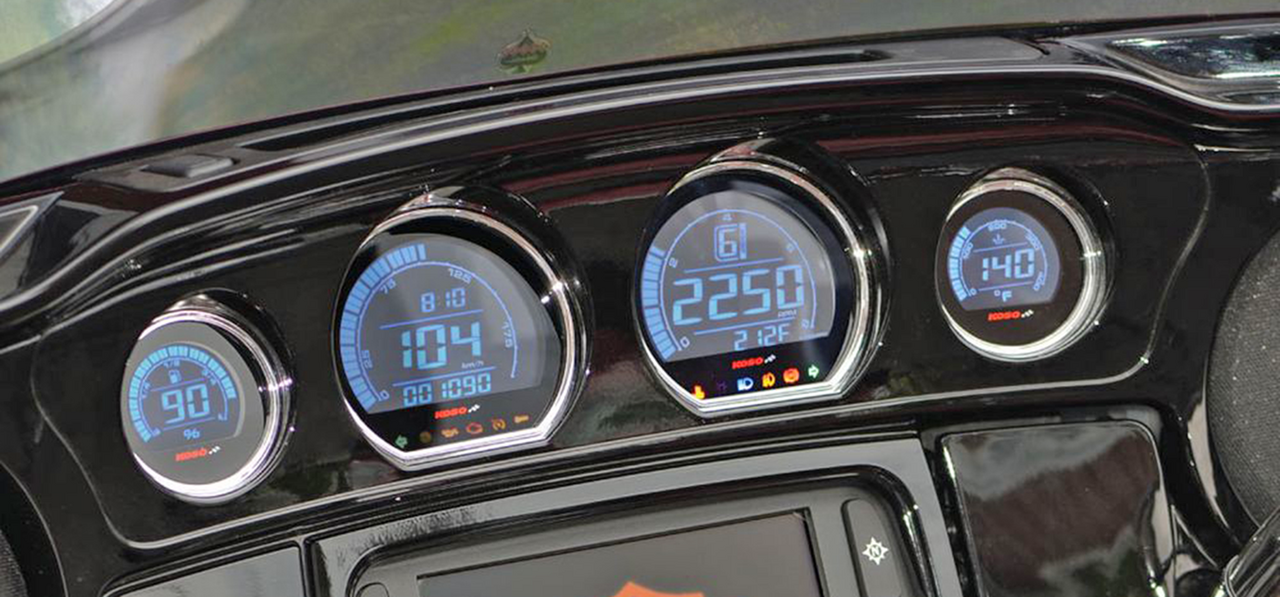

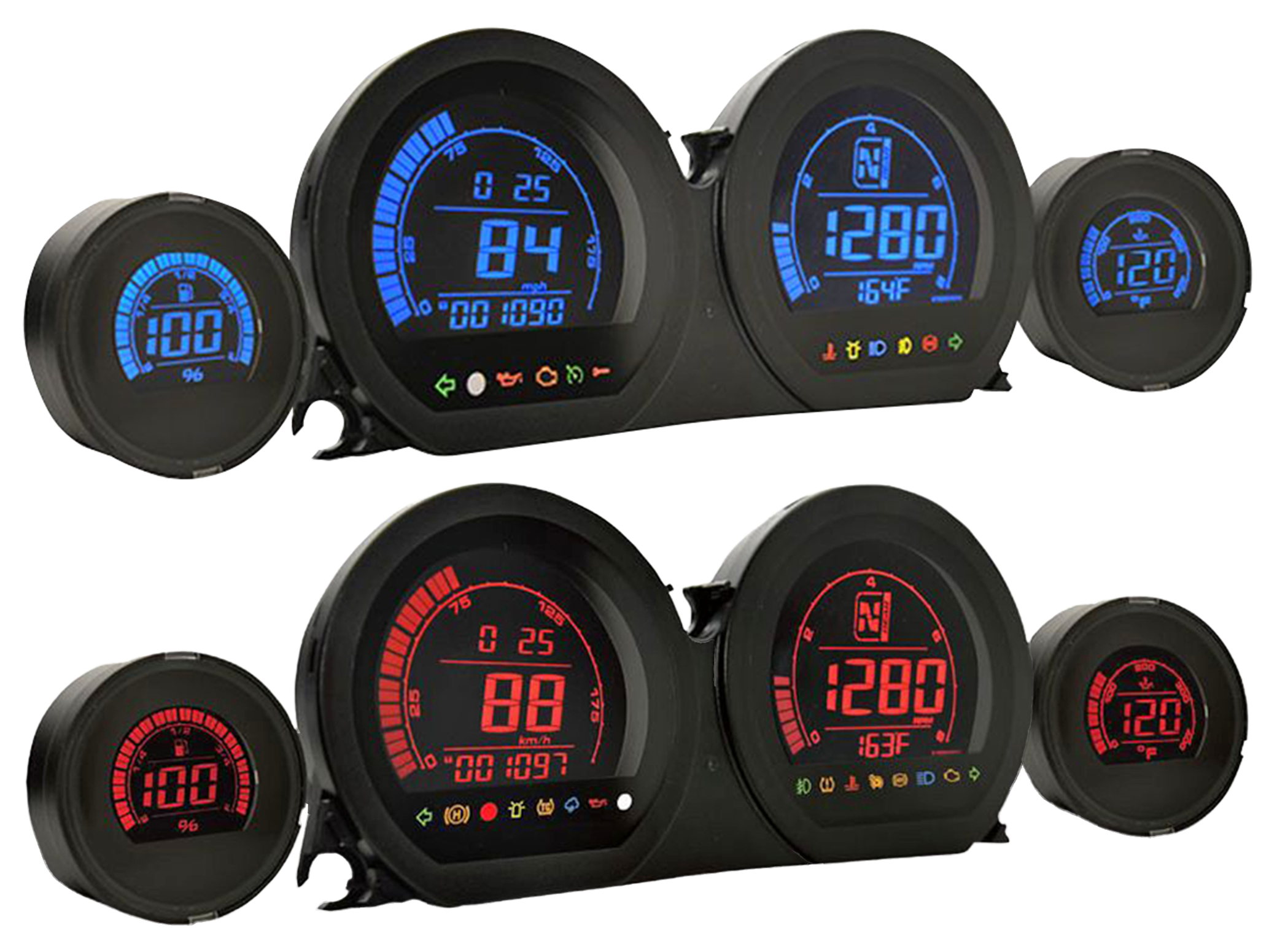

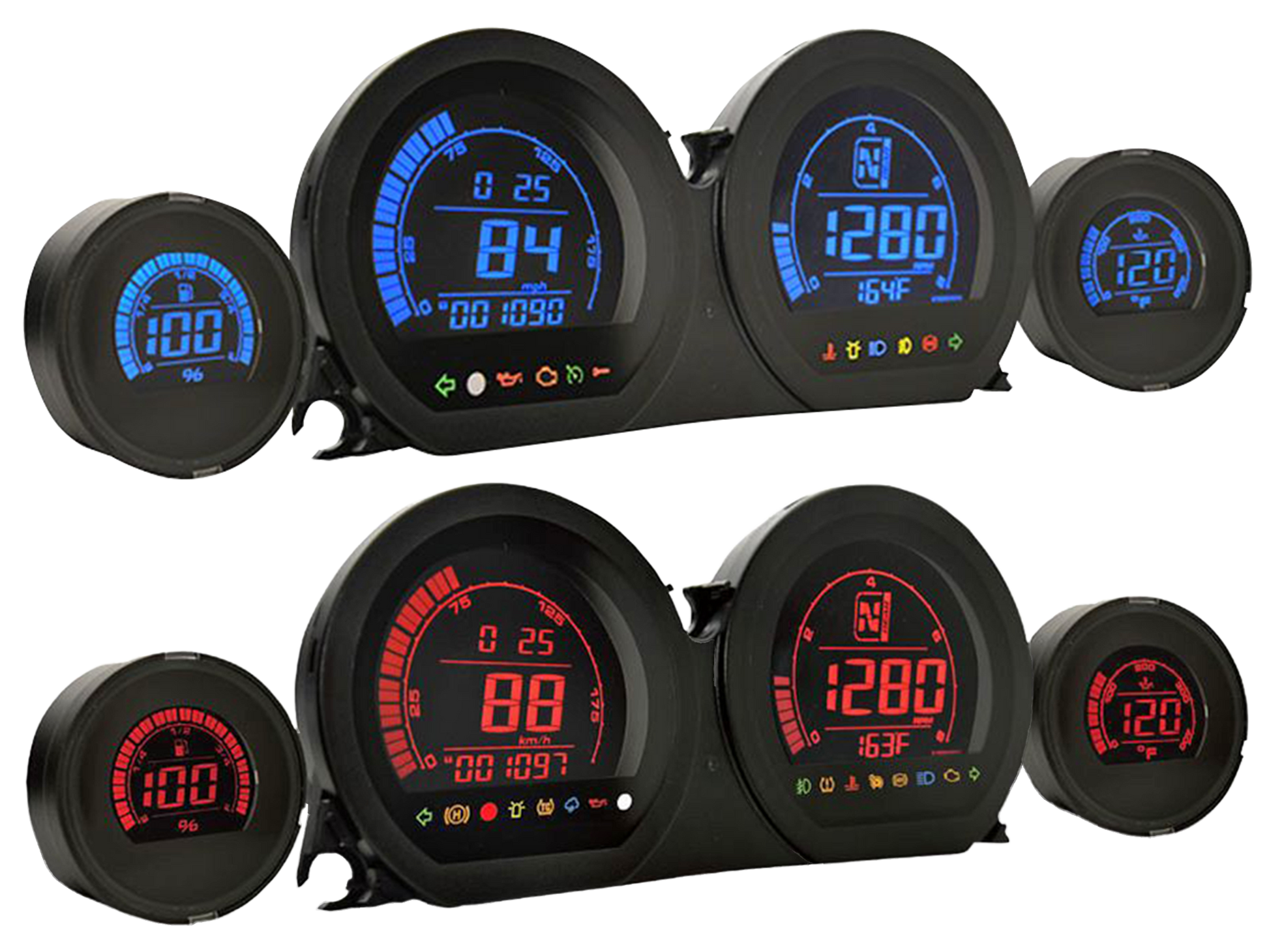

The Koso HD-03 set is a great upgrade solution for Touring 2014-2023 (except 2023 CVO). This Plug-n-Play set replaces the stock instruments and offers easy installation without drilling or complicated wiring. Simply connect the instruments to the existing harness, insert them into the fairing, and you’re done! The instruments come with blue or red backlighting, delivering an impressive look, a true highlight both day and night. The set includes a 4" speedometer, 4" tachometer with gear indicator, 2" oil temperature gauge and a 2" fuel gauge. The speedometer displays 0-299 km/h (0-199 mph), gives an overspeed waring by turning a warning light on at a set value, records maximum speed. Odometer up to 999999 km (miles), tripmeter A/B up to 9999.9 km (miles) and shows maintenance intervals adjustable from 500-16000 km (300-10000 miles). Tachometer displays up to 9990 RPM, has an integrated shift light and max RPM can be set from 0-8000 RPM. Oil temperature displays 40-300°C (40-572°F) and keeps max oil temperature in it's memory. The fuel gauge can be adjusted to tank volume from 1.0-9.9 US gallons, shows fuel consumption in L/100km, km/L, MPG (US) or MPG (UK). Also gives a range indication from 0-9999 km (6249 miles), LCD shows "LO RNG" and blinks when range is under 16 km (10 miles). Further features a 12H/24H clock, voltmeter, operating temperature, operating voltage. And indicator lights for turn signals, oil, engine warning, cruise control, immobilizer, water temperature, warning light, high beam, fog light and ABS. The Koso HD-03 set is a powerful solution for riders seeking a simple yet effective way to upgrade their instruments. The set not only enhances the bike’s appearance but also provides accurate and practical functions such as gear indicator, customizable fuel gauge, and a variety of warning features. Perfect for riders who want to take their bike to the next level.

Koso HD-03 gauge kit selectable red or blue only

Koso HD-03 Gauge Kit Dual FLH/T14-23

• Category: Speedo & Tacho
