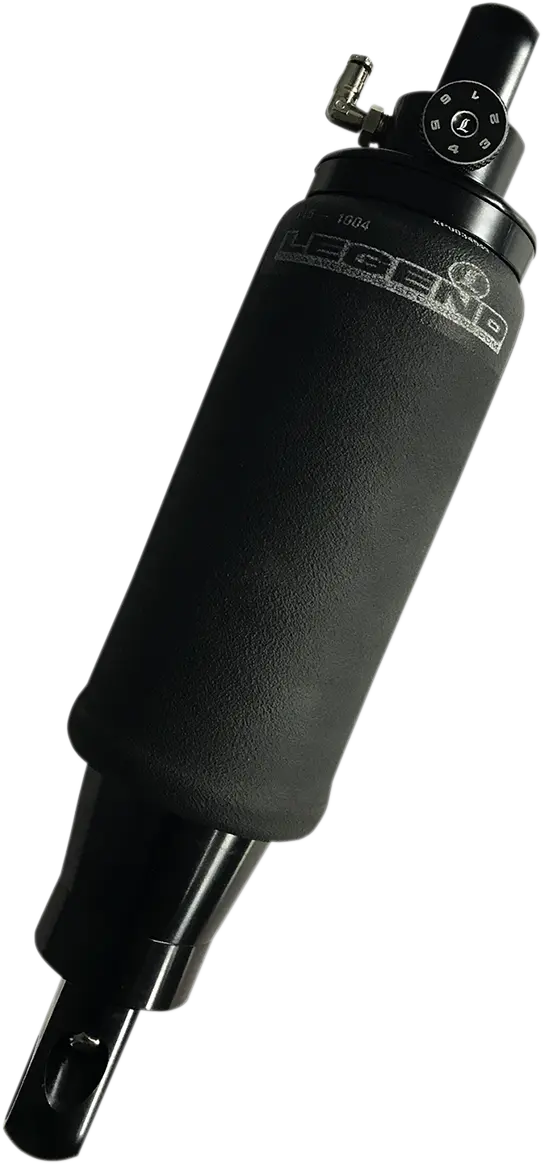

Legend Suspension AIR-A Air Shock - 13" - Black - 1311-0156

Experience the pinnacle of ride quality with the Legend Suspension Air-A air suspension system. This system is designed to provide superior handling and comfort, making it the perfect upgrade for your M-Eight Softail motorcycle.

Description

The Legend Air-A suspension system redefines ride quality. Featuring spherical bearings on both top and bottom mounting points, installation and alignment are a breeze. Six external knob adjustments allow you to fine-tune the rebound using advanced needle valve technology, optimizing performance for any rider weight, riding style, or personal preference. Whether you're a light or heavy rider, cruising casually or riding aggressively, you can easily adjust the suspension to achieve your desired feel. The exclusive Aramid Fiber air spring technology provides spring rate adjustability, maximizing wheel travel and allowing you to adjust to any desired ride height. The Type III hard-coat black anodized machined aluminum bodies, combined with a low-friction sealing system and sliding bearings, ensure improved performance and feel. A high-flow piston reacts quickly to improve fluid flow management, while deflective disc valving self-adjusts to frequency, guaranteeing controlled performance. The internal floating nitrogen piston ensures consistent damping performance, providing a plush, compliant ride with increased bottoming resistance. Installation is straightforward, with the shock mounting under the seat, replacing the stock shock. A prewired air compressor with a model-specific mount and a complete wire harness with three easy Deutsch connections are included. An OEM-looking black handlebar-mounted control allows for easy on-the-go adjustability.

Features & highlights

• Achieve superior ride quality and handling with the Legend Air-A suspension system.
• Enjoy easy installation and alignment thanks to spherical bearings on mounting points.
• Fine-tune rebound with six external knob adjustments using needle valve technology.
• Customize spring rate with exclusive Aramid Fiber air spring technology for optimal wheel travel.
• Experience improved performance and feel with Type III hard-coat anodized aluminum bodies and a low-friction sealing system.

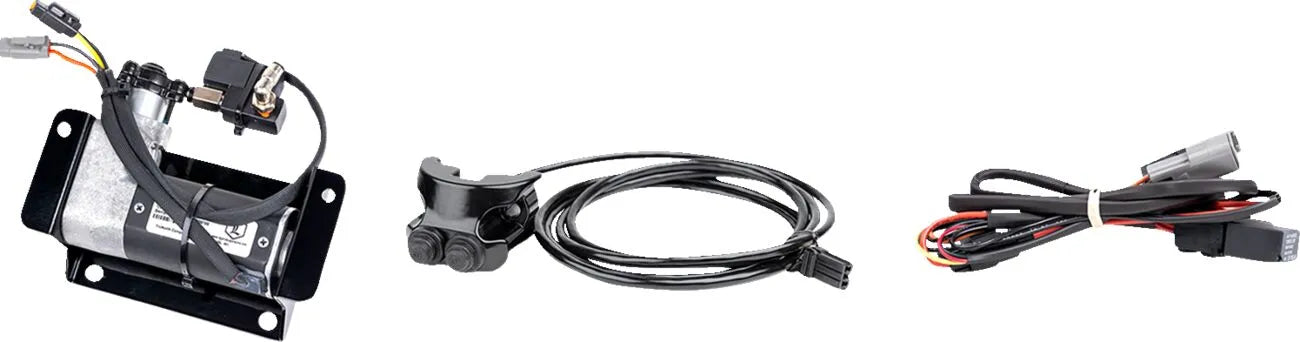

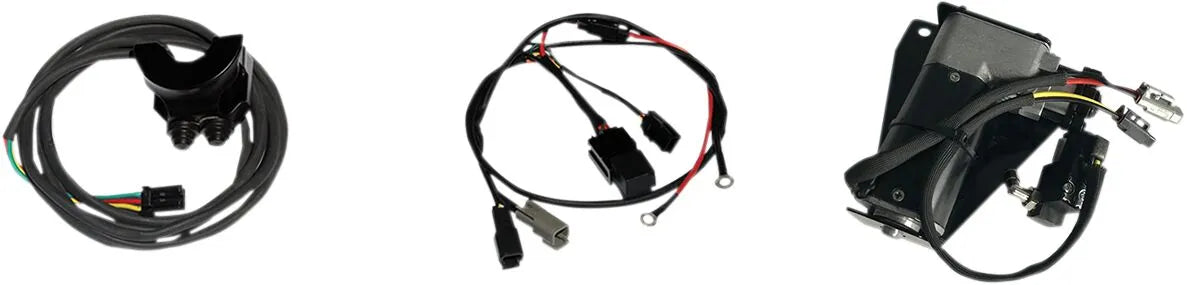

• Adjust ride height on-the-go with the included OEM-looking handlebar-mounted control.
• Handmade in Sturgis, South Dakota, USA, ensuring top-notch quality and craftsmanship.

Technical specifications

• Brand: Legend Suspension
• Vendor Part Number: 1311-0156
• Adjustment Type: Adjustable Rebound Damping
• Color/Finish: Anodized
• Extended Length: 13.00" (330.20 mm)
• Material: Billet Aluminum
• Mounting Position: Rear
• Product Name: Shock Absorber
• Type: Air Mono-Tube

Important to know

• Optional chrome handlebar mounted control is sold separately (Part # 0616-0207).
