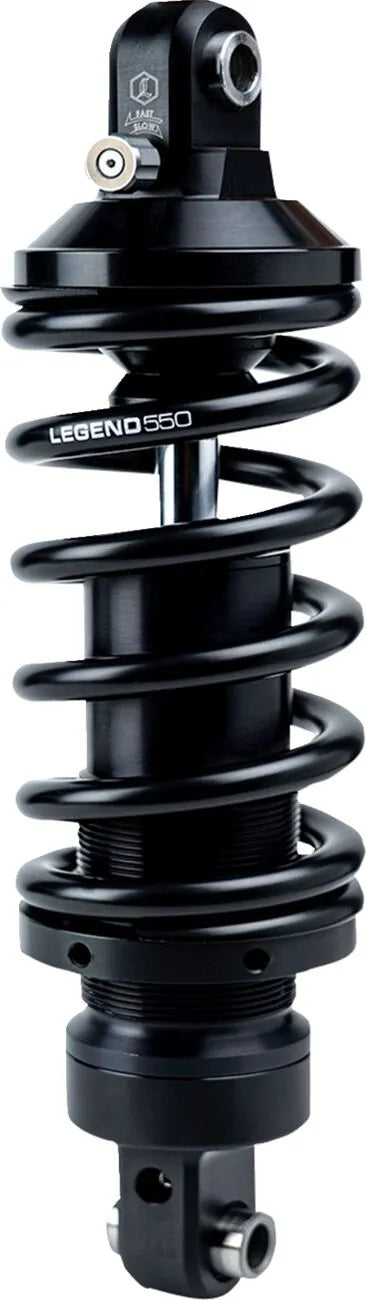

Legend Suspension REVO-A Heavy Duty Shocks - 13" - Black - 1310-2250

Upgrade your M-Eight Softail with the Legend Suspension REVO-A adjustable coil suspension. This mono shock is engineered to deliver superior ride comfort and handling, ensuring all-day riding pleasure. Experience unmatched control and performance with this meticulously crafted suspension system.

Description

The Legend Suspension REVO-A coil suspension is specifically designed for M-Eight Softail models, offering enhanced performance and comfort. Available in multiple lengths (12.5", 13", and 13.5") and standard or heavy-duty configurations, this mono shock features adjustable preload, allowing riders to fine-tune their setup for varying weights and loads. Legend's touring-specific spring rates provide exceptional ride quality, improved handling, and increased resistance to bottoming. The adjustable rebound damping allows for precise and repeatable adjustments to ride comfort and performance with a simple turn of a knob. Its hard anodized, 46 mm billet aluminum mono tube design incorporates a lightweight, high-flow piston for improved fluid dynamics, resulting in superior handling and bike control. The larger, hard chromed shaft increases strength, while the internal floating nitrogen piston ensures consistent damping. Deflective disc valving self-adjusts to frequency for controlled performance. Easy to install using OEM mounting hardware, this shock is designed for optimum performance when paired with the Legend Axeo front suspension.

Features & highlights

• Specifically designed for M-Eight Softail models, ensuring a perfect fit and improved performance.
• Adjustable preload allows for personalized setup based on rider weight and load, optimizing ride comfort.
• Adjustable rebound damping enables fine-tuning for any rider weight, preference, or riding style.
• 46 mm billet aluminum mono tube design with a lightweight high-flow piston for unmatched handling.
• Hard chromed shaft (14% larger) provides increased strength and durability for demanding riding conditions.
• Internal floating nitrogen piston ensures consistent damping performance, maintaining stability.
• Easy installation using OEM mounting hardware, simplifying the upgrade process.

Technical specifications

• Brand: Legend Suspension
• Product Name: Shock Absorber
• Vendor Part Number: 1310-2250
• Type: Coilover Monotube
• Mounting Position: Rear
• Adjustment Type: Adjustable Rebound Damping
• Damping Method: Deflective Disc
• Extended Length: 13.00" (330.20 mm)
• Material: Billet Aluminum
• Color/Finish: Black, Anodized
• Duty: Heavy Duty
• Units: Each

Important to know

• Sold as Mono Shock (1 shock only).
