MCS Scan Diagnostic Scanner Kit

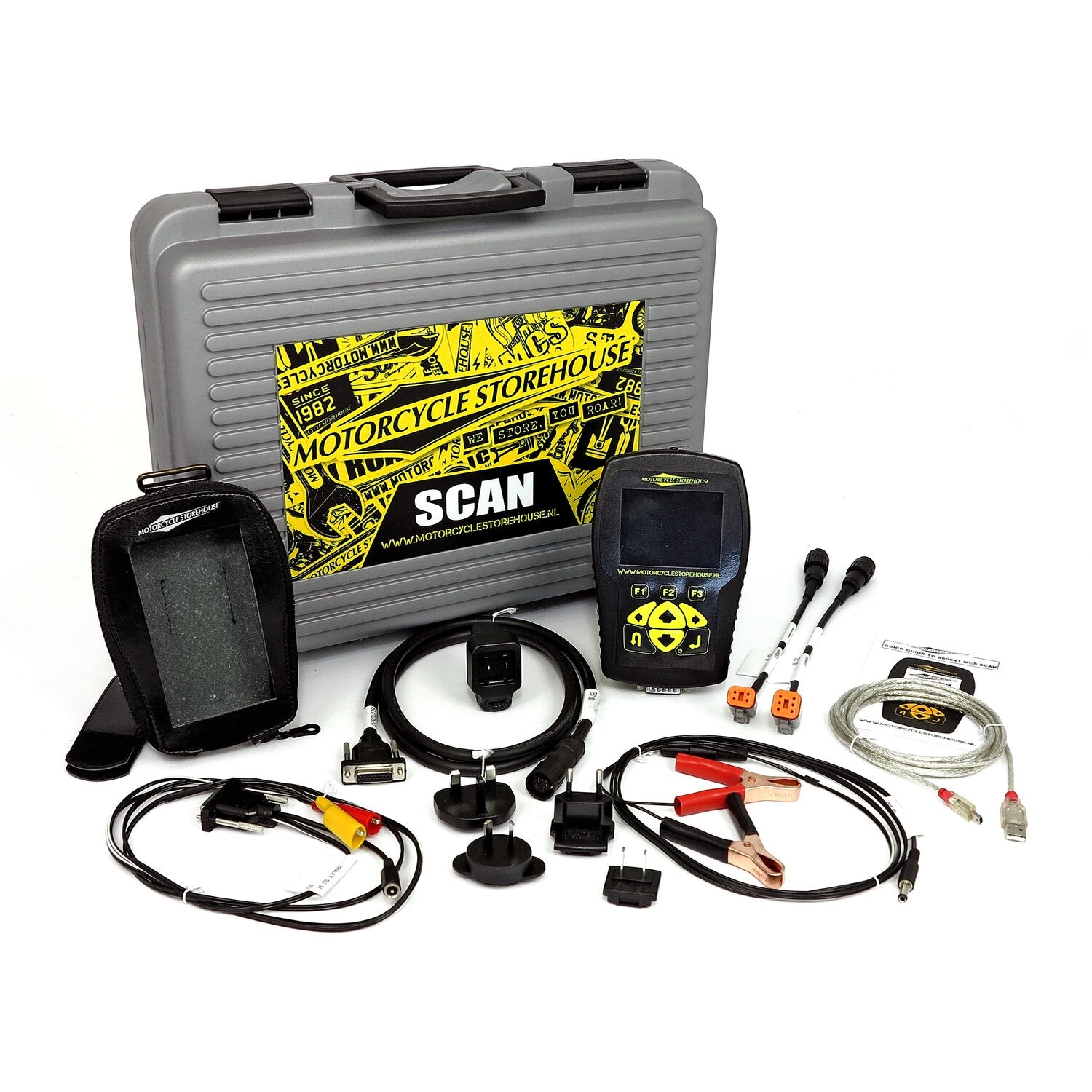

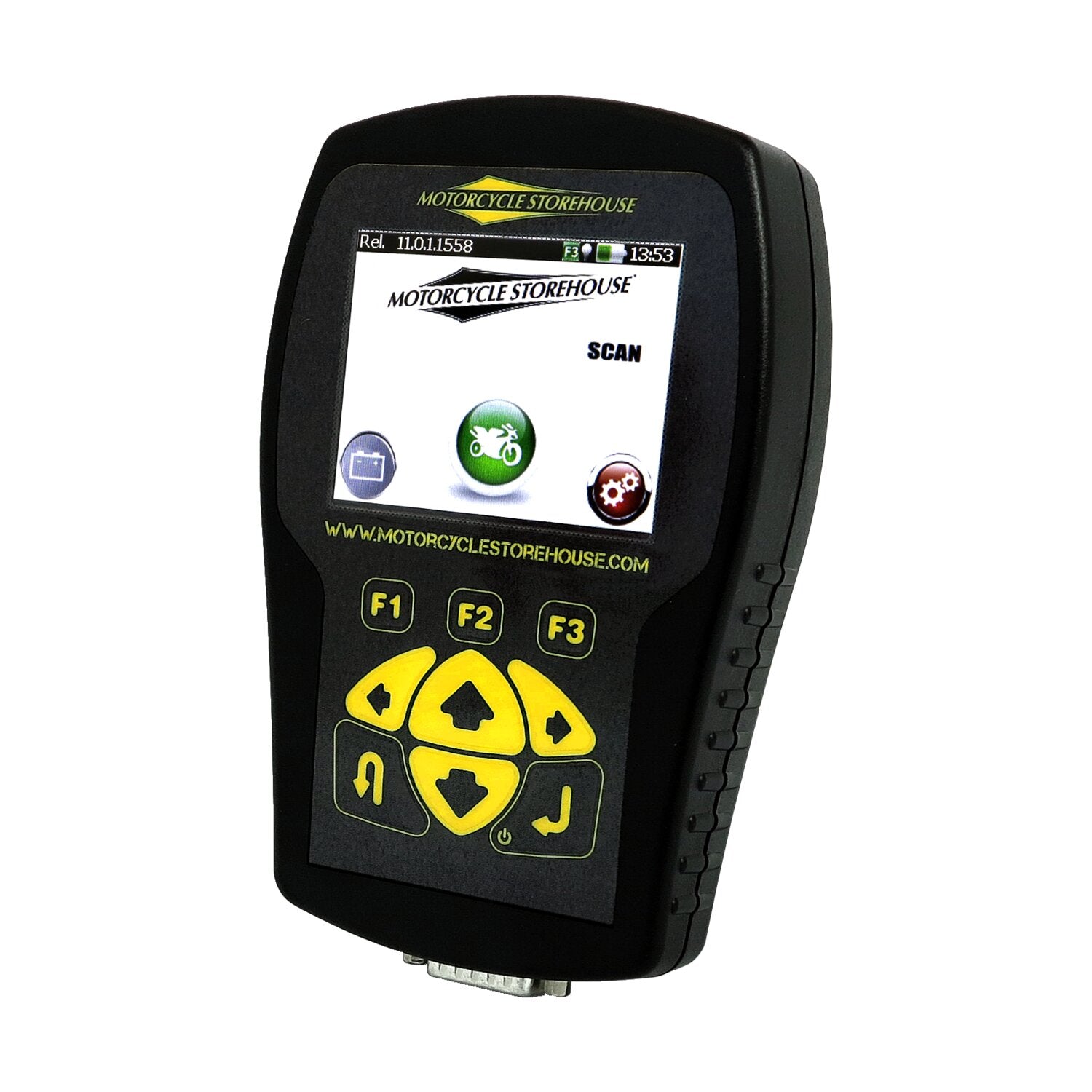

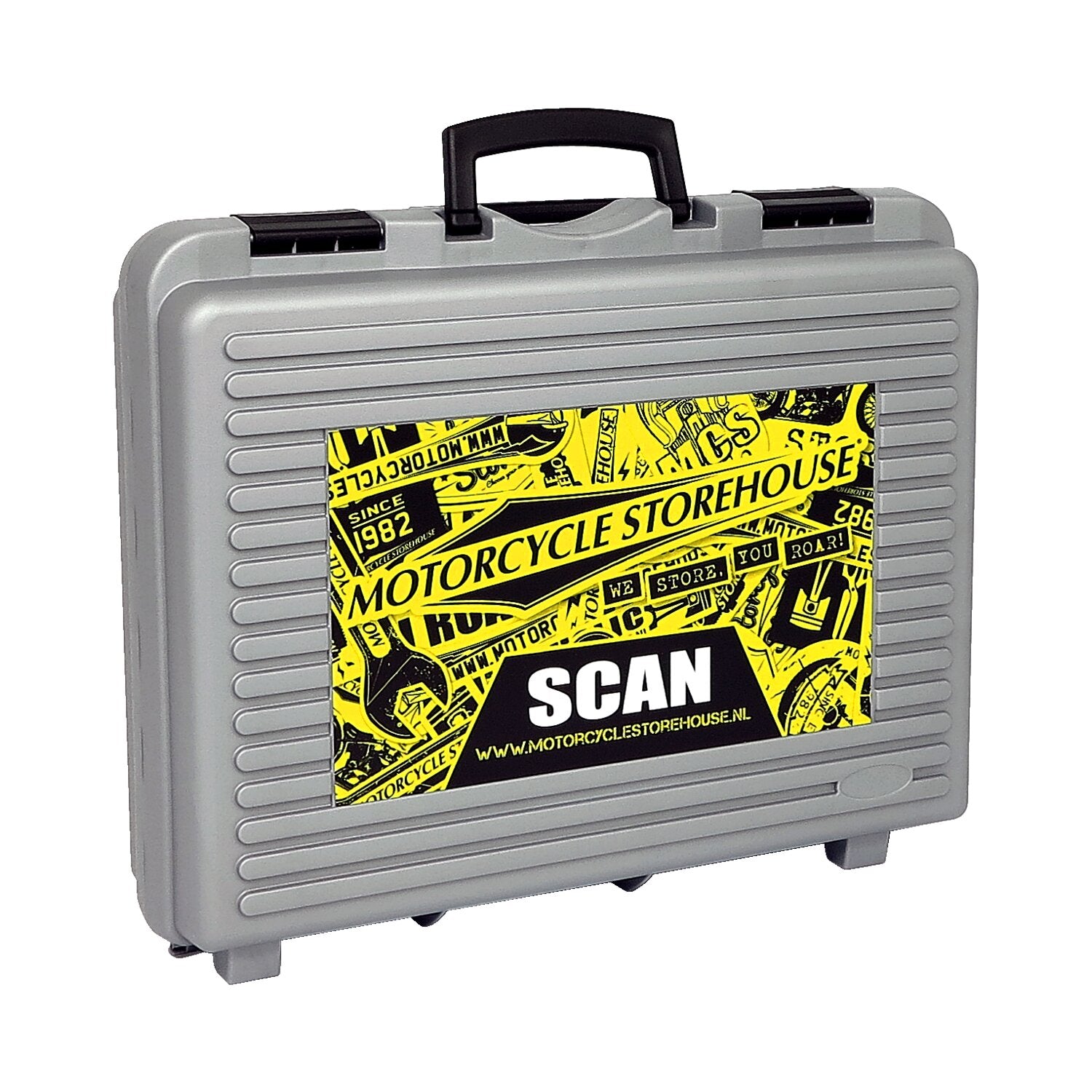

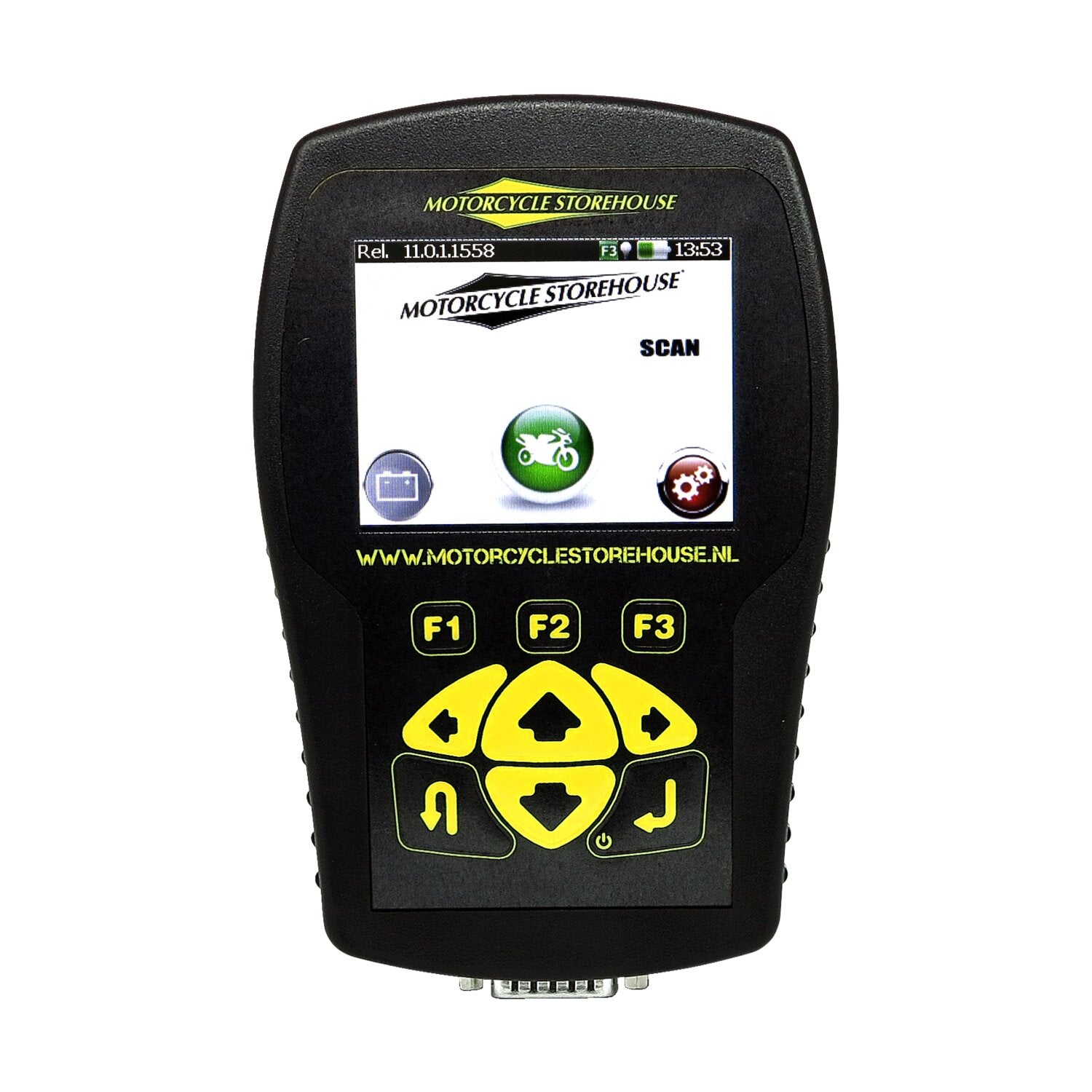

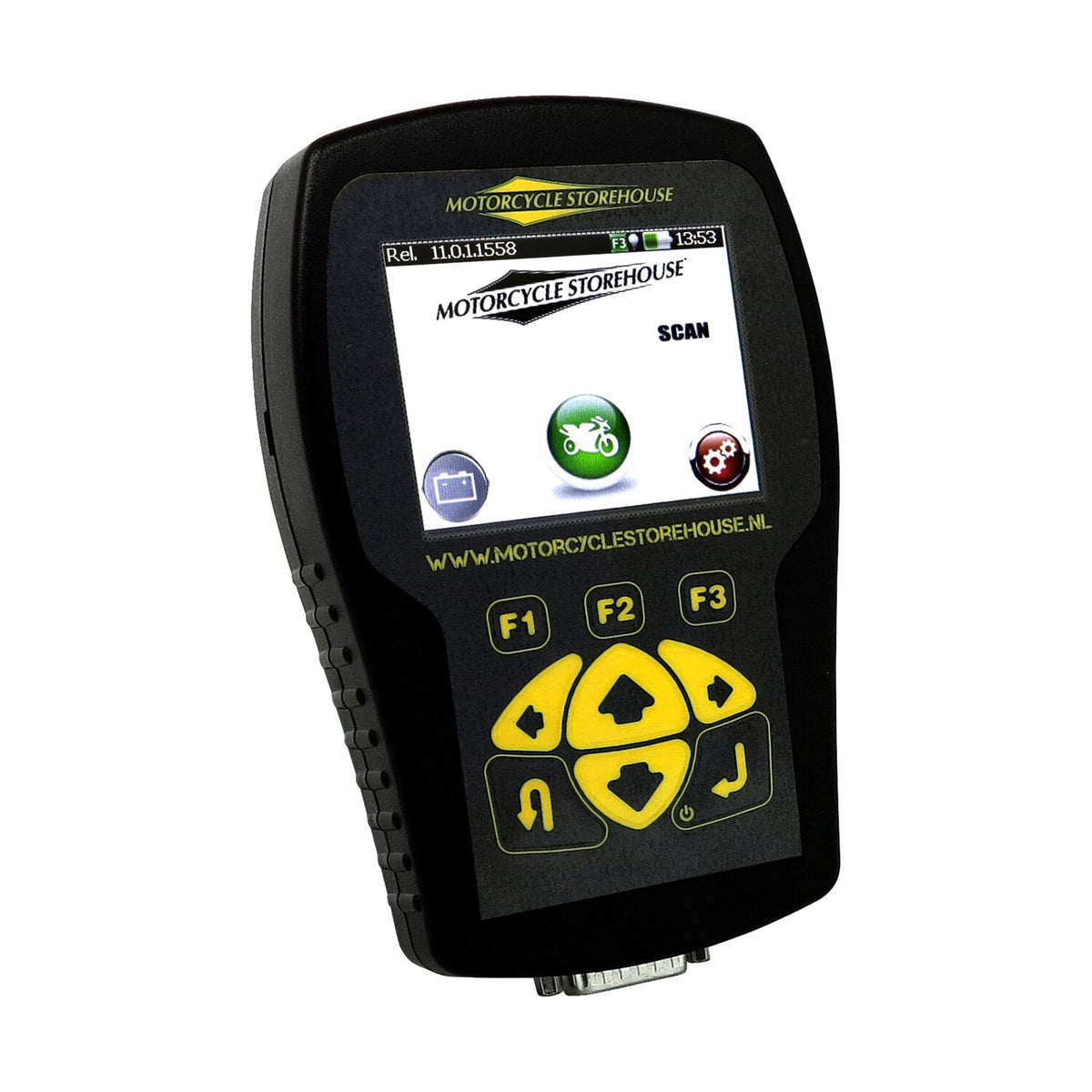

SCAN is a user friendly multiple language diagnostics scanner with a virtual intuitive operating menu. It offers advanced diagnostics and reads & deletes trouble codes. Plugs into the standard OBD (On-Board-Diagnostics / data link) plug. SCAN is unlocked for H-D models only & includes H-D connector slave cables. From the included USB stick a program (Operating Suite) is installed onto your computer. Then SCAN is connected to your computer to install the latest H-D software. - Updates? MCS SCAN will receive free of charge future updates. For receiving updates SCAN must be connected to a computer. - What's included? SCAN comes complete with a sturdy carrying case, 560073 H-D 4-pin cable, 560096 H-D 6-pin cable, 948364 cable for 2021-up H-D models (incl. RH & RA Revolution engines) and the 560105 universal cable for 95-01 Touring with Magneti Marelli injection. Note: Future updates are installed automatically and free of charge. Diagnostic options: - ABS pressure test - ABS air purging test (bleeding air from ABS system) - Immobilizer / Alarm configuration - Temporary immobilizer unlocking - TPS (Throttle Valve Sensor) adjustment - Ignition test - Injection test - Dashboard - Body Computer, ECU data display - Radio check - Handlebar commands check - Read stored & current faults/trouble codes - Delete trouble codes - Data logger engine ECM parameters - Zero setting self-adaptive parameters - Live data display (RPM, battery Voltage, throttle angle, ect.) - And much more System options: - Screenshot option at any moment - Selectable auto shut-off - Build-in speaker - Selectable languages: English, Italian, German, Portuguese, French, Spanish, Polish, Greek, Russian. Stock replacement parts (as included in this 560041 SCAN kit): - 560103 Master cable - 560101 Four AC/DC power supply sockets - 560102 USB power cable - 560104 Battery power cable - 560073 H-D / Buell 4-pin - 560096 H-D 6-pin - 996456 H-D 6-pin Euro 5 2021-up models (incl. RH & RA Revolution engines) Note: Special Order product only. To order please contact your MCS sales representative.

• Category: Tools diagnostic
