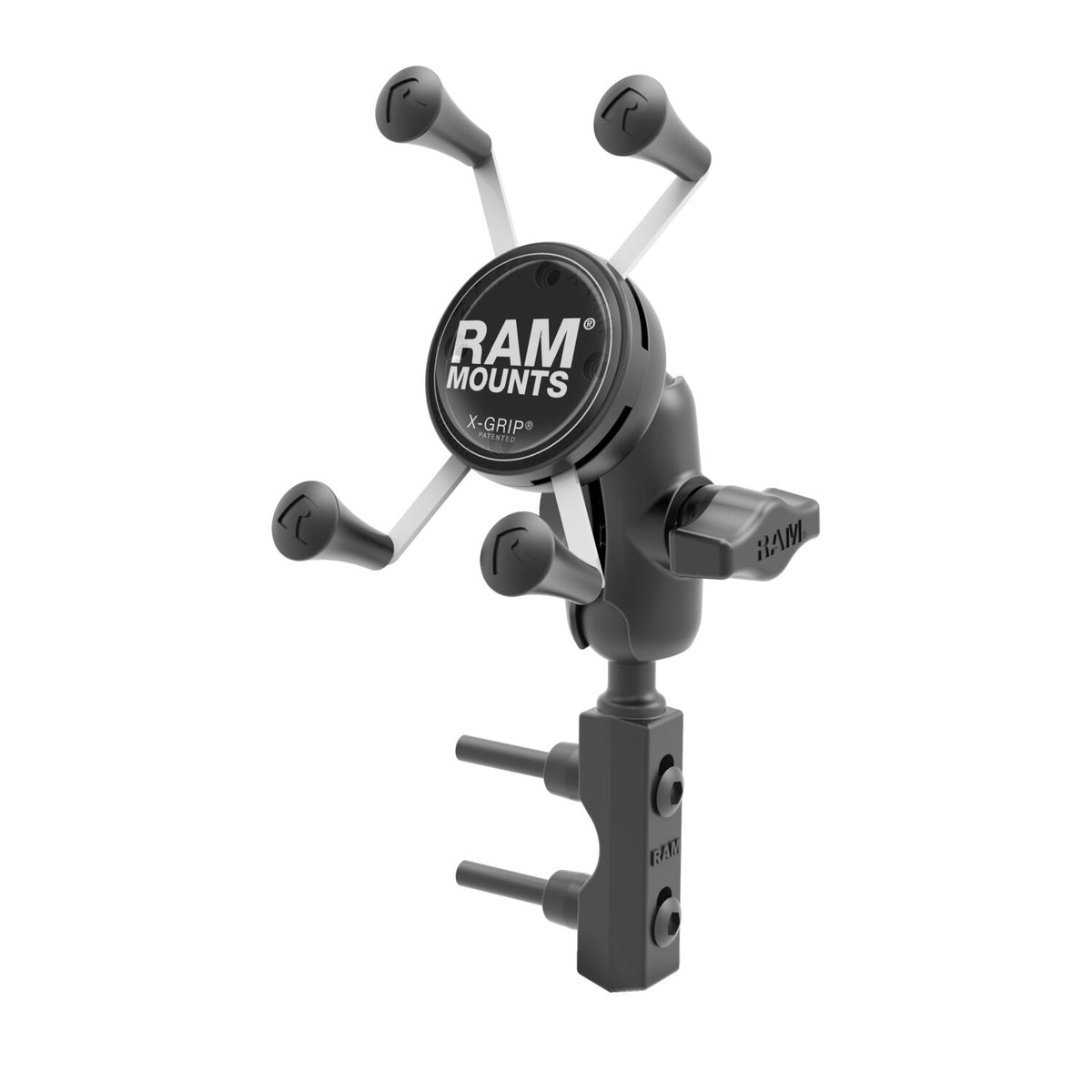

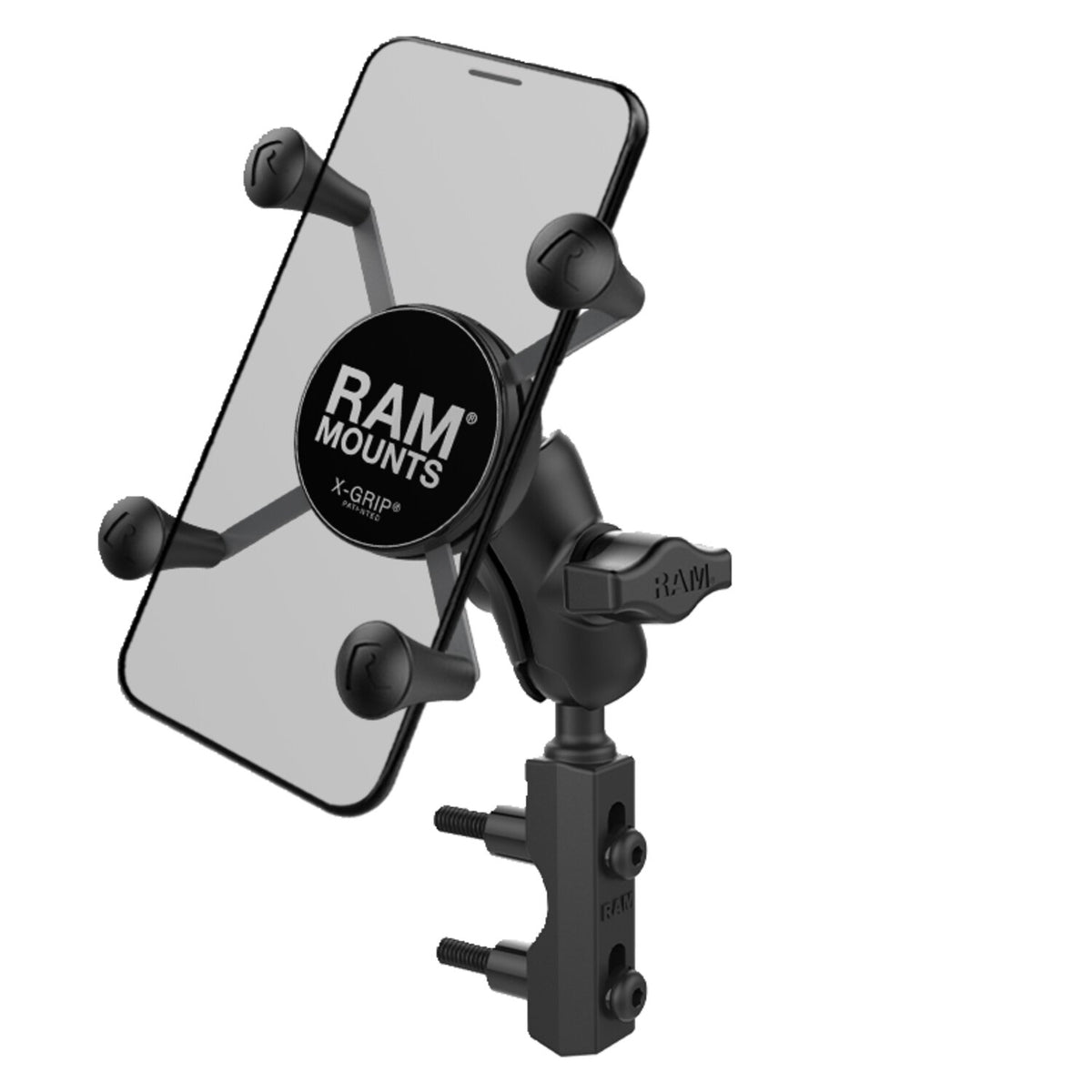

Ram Mounts X-Grip Phone Mount - RAM-B-174-A-UN7

- Small Phone X-Grip holder - For phones 1.875" (47.6mm) to 3.25" (82.6mm) wide and max .875" (22.2mm) deep - Short 1.75" (44.5mm) ball to ball socket arm - A brake / clutch reservoir - Two 'U-bolt' bases that will give various mounting options to round and square tubing - Clamps to 1/2" (12.7mm) to 1.25" (31.8mm) diameter tubes handlebars / tubing / rails - Holds max. 2 lbs / 907 gram normal use or 1 lbs (454 gram) heavy duty use - Includes: (1) Optional Tether, (1) Glue Tube for Rubber Caps, (2) M6 x 55mm Hex Bolts, (2) #1/4-20 x 2" Hex Bolts, (2) 1/4"-20 x 2.5" Hex Bolts, (2) 1/2" Spacers, (2) 1/4" Split Lock Washers, (1) 1/4"-20 U-Bolt for .5" - 1" Rails, (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails - Materials used: Marine-grade aluminum, high strength composite, stainless steel. Consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, short length double socket arm and universal X-Grip cell phone cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size. RAM Mounts - The way It Works? A 3-piece system: 1 the mount base, 2 the connecting arm, 3 the device holder. - 1 the mount base - Equipped with RAM's 1" diameter elastomeric hard rubber socket ball. A connection that is easy adjust, slip-free and vibration absorbing. Various mount base options available. - 2 socket arm / connecting arm - A connecting arm with sockets that grip the rubber balls of the mount base and of the phone holder, effectively connecting both parts while offering virtual infinite tool-free adjustments. - 3 Phone holder / X-Grip - An innovative spring-loaded system with rubber caps on the 'fingers' that will clamp your phone. The X-Grip phone holder is equipped with RAM's elastomeric hard rubber socket ball for a slip-free, vibration absorbing mount to the socket arm.

• Category: Device holders(phone/gsm)
• Manufacturer part number: RAM-B-174-A-UN7
