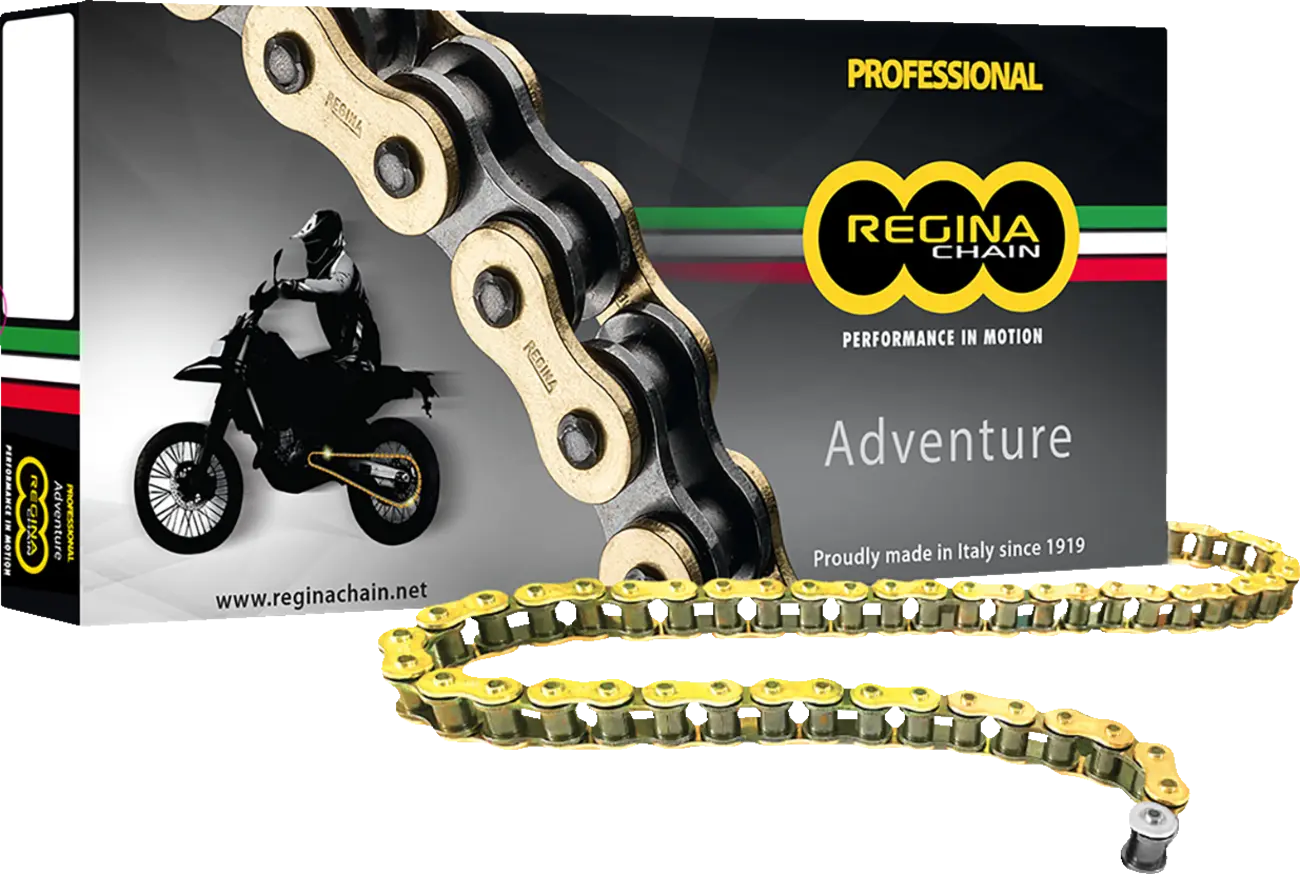

Regina 520 Zre Z-ring Chain

The Regina 520 ZRE Z-Ring Chain delivers exceptional performance and durability for demanding applications. Engineered with precision and manufactured to the highest standards, this chain ensures reliable power transfer and extended service life.

Description

The Regina 520 ZRE Z-Ring chain features patented Z44 seal Z-rings that maintain optimal lubrication and prevent debris from entering the critical pin and bushing areas. The unique Z-ring design flexes upon assembly, creating a spring effect that ensures the seal remains effective over time, unlike conventional O-rings. This innovative design also enhances chain flexibility, reducing friction and maximizing power output. Constructed with high-alloy steel plates and pins, solid bushings and rollers, and shot-peened components, the 520 ZRE is built to withstand extreme stress and deliver consistent performance. Pre-stretching enhances performance from the first ride, reducing initial wear and increasing longevity. Suitable for off-road motorcycles up to 600cc.

Features & highlights

• Patented Z44 seal Z-rings provide superior sealing and lubrication.
• Z-ring design enhances chain flexibility and reduces friction.
• High-alloy steel plates and pins ensure maximum strength and durability.
• Solid bushings and rollers offer improved wear resistance.
• Shot-peened plates, pins, and rollers increase fatigue strength.
• Pre-stretched to minimize initial wear and extend chain life.
• Includes both clip-type and rivet-type master links for versatile installation.

Technical specifications

• Brand: Regina
• Chain Size: 520
• Chain Type: 520 ZRE
• Seal Type: Z-Ring
• Color/Finish: Gold
• Material: Steel
• Maximum Engine Displacement (Offroad): 600 cc
• Tensile Strength: 35 kN (7868 lb)
• Number of Links: 112
• Master Link Connector Type: Rivet
• Weight: 1.68 kg/100 Links

Important to know

This chain includes both clip and rivet type master links, offering installation flexibility. Be sure to use the appropriate tools and follow proper installation procedures. Riveting tool is required for rivet type master links.
