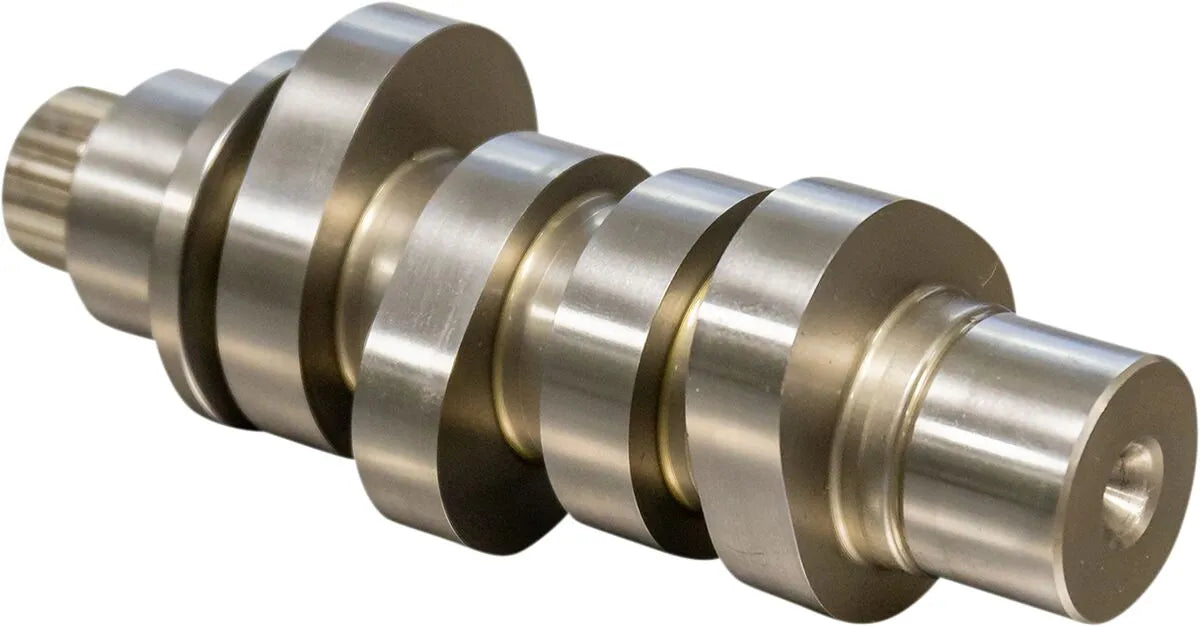

S&S Cycle M8 590C Chain Drive Camshaft Kit - Raw - 330-0730

Unleash maximum horsepower from your 124" or larger engine with the S&S Cycle 590C Chain Drive Camshaft Kit. This kit is engineered for high-performance applications, ensuring your engine delivers uncompromising power and responsiveness.

Description

The S&S Cycle 590C camshaft kit is designed for use with monster bore cylinders and ported heads, optimizing airflow and maximizing engine output. This camshaft is not recommended for stock bore engines, as it is specifically designed to complement heavily modified engines. The 590 series grind delivers aggressive performance and enhanced torque throughout the RPM range. This kit includes all necessary bearings, o-rings, and hardware for a seamless installation. Tappets should always be replaced when installing a new cam; S&S recommends their Precision Tappet set without HL2T Kit and Tappet Cuffs for M8 models. Upgrade your engine with confidence, knowing that this kit is proudly made in the USA to the highest standards of quality and performance.

Features & highlights

• Maximize horsepower in 124" and larger engines.
• Optimized for monster bore cylinders and ported heads.

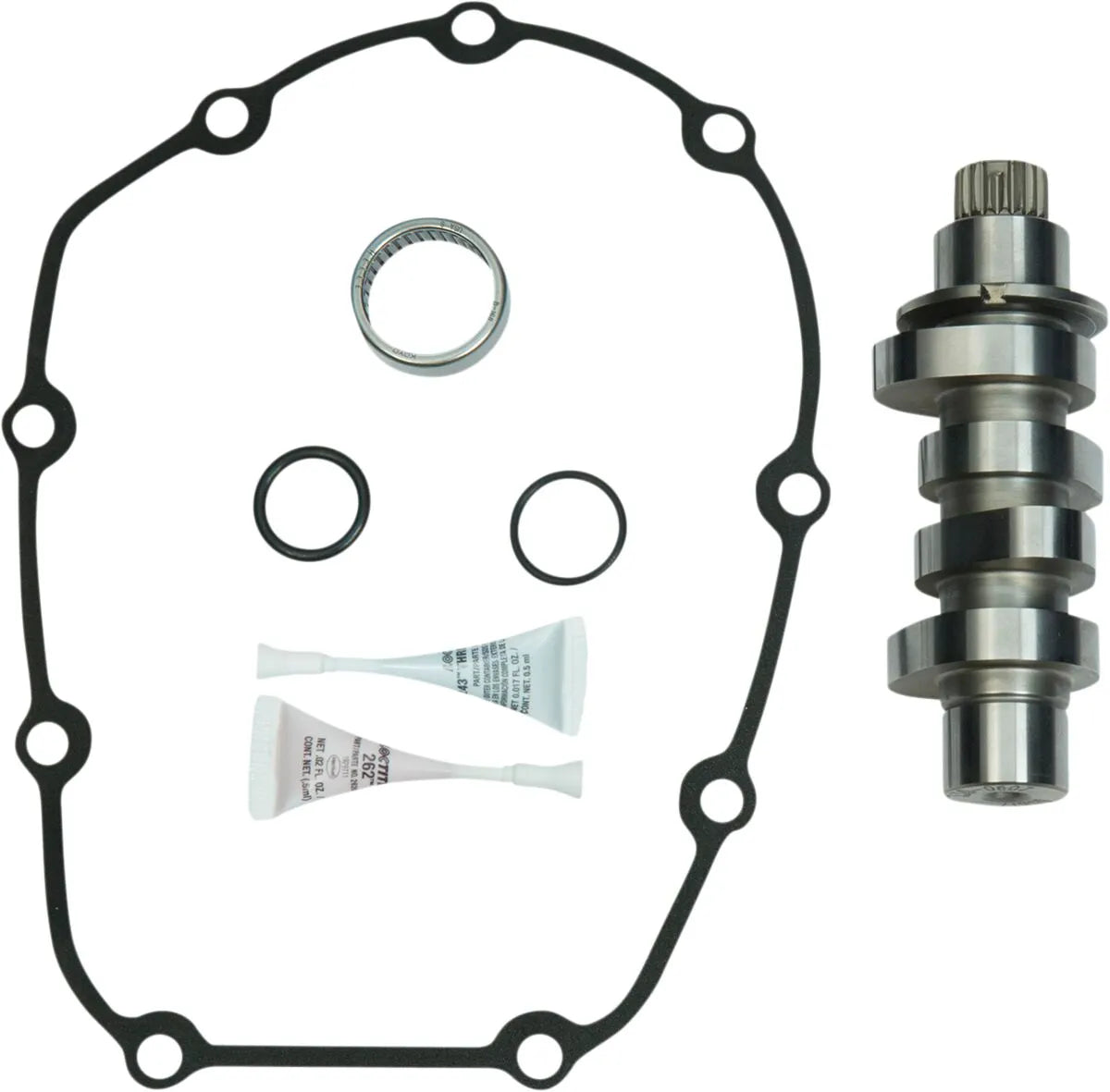

• Includes all required bearings, o-rings, and hardware for installation.
• Delivers aggressive performance and enhanced torque.
• Designed for optimal airflow and maximum engine output.
• Made in the USA.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camshaft Kit
• Type: Chain Drive
• Grind: 590 Series
• Intake Duration: 239.4° Front, 253.9° Rear
• Intake Lift: 0.59" Front, 0.59" Rear
• Intake Lobe Centerline: 104.1° Front, 106.7° Rear
• Exhaust Duration: 266.1° Front, 258.4° Rear
• Exhaust Lift: 0.59" Front, 0.59" Rear
• Exhaust Lobe Centerline: 111.7° Front, 113.5° Rear
• Exhaust Lift at TDC: 0.186" Front, 0.158" Rear
• Intake Lift at TDC: 0.165" Front, 0.186" Rear

Important to know

• Designed for 124" and larger engines.
• Not recommended for stock bore engines.
• Touring models require heavy duty valve spring kit (not included).
• Requires Quikee adjustable pushrods with cover keepers (not included).
• Tappets are not included; S&S recommends Precision Tappet set without HL2T Kit and Tappet Cuffs for M8 models.
