Wiseco 125cc 2-stroke Piston Kit

Upgrade your 2-stroke engine's performance with the Wiseco High-Performance Piston Kit. This complete kit provides all the necessary components for a full top-end rebuild, ensuring optimal power and reliability for your 125cc engine. Wiseco's renowned quality and precision engineering deliver enhanced durability and improved combustion efficiency.

Description

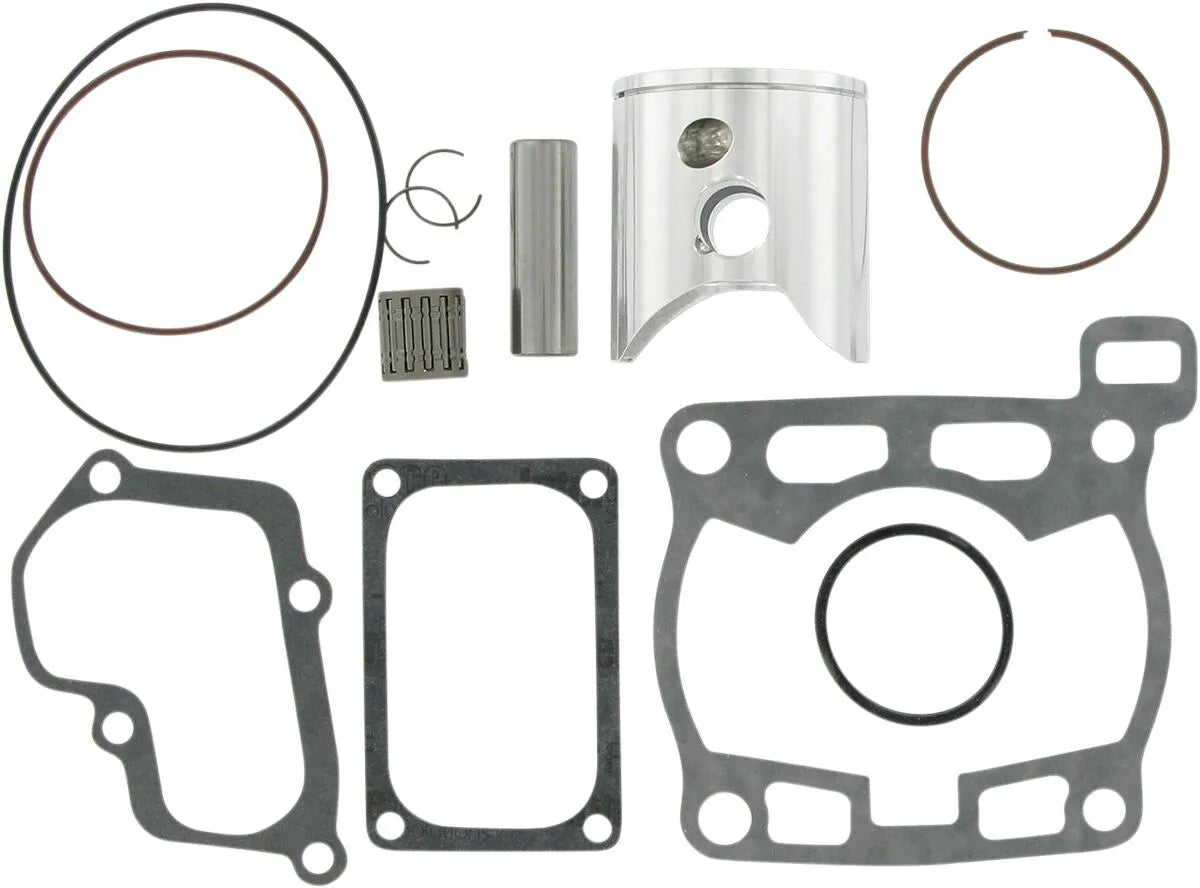

The Wiseco Piston Kit is designed for enthusiasts and professionals seeking to maximize the potential of their 2-stroke engines. Each kit includes a high-performance piston crafted from 4032 aluminum alloy, known for its exceptional strength and heat resistance. The precise machining and optimized design of the piston contribute to improved cylinder sealing and reduced friction, resulting in increased horsepower and torque. This kit also includes matched piston rings, a wrist pin, circlips, and a comprehensive top-end gasket kit, ensuring a leak-free and reliable seal. This kit is specifically for 125cc 2-stroke engines with a 54.00 mm bore and 54.50 mm stroke length.

Features & highlights

• Complete top-end rebuild solution for 2-stroke engines.
• High-performance piston crafted from durable 4032 aluminum alloy.
• Optimized piston design for improved cylinder sealing and reduced friction.
• Includes matched piston rings, wrist pin, and circlips.
• Comprehensive top-end gasket kit for a leak-free seal.
• Engineered for increased horsepower and torque.

Technical specifications

• Brand: Wiseco
• Part Number: PK1377
• Engine Type: 2-Stroke
• Displacement: 125cc
• Bore Size: 54.00 mm
• Piston Diameter: 53.95 mm
• Stroke Length: 54.50 mm
• Piston Material: 4032 Aluminum Alloy
• Skirt Coating: Non-Coated
• Type: Top End

Important to know

Wiseco pistons are designed to be fitted exclusively with Wiseco rings. Wiseco ring types are not interchangeable (e.g., CD is not interchangeable with LC). Cylinder sleeves must be purchased separately.
